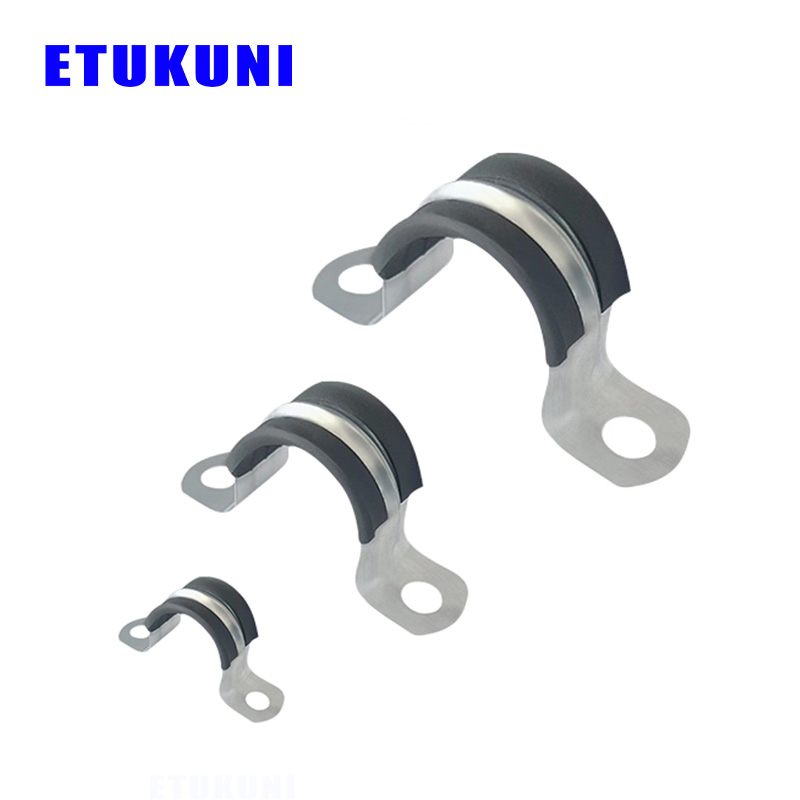

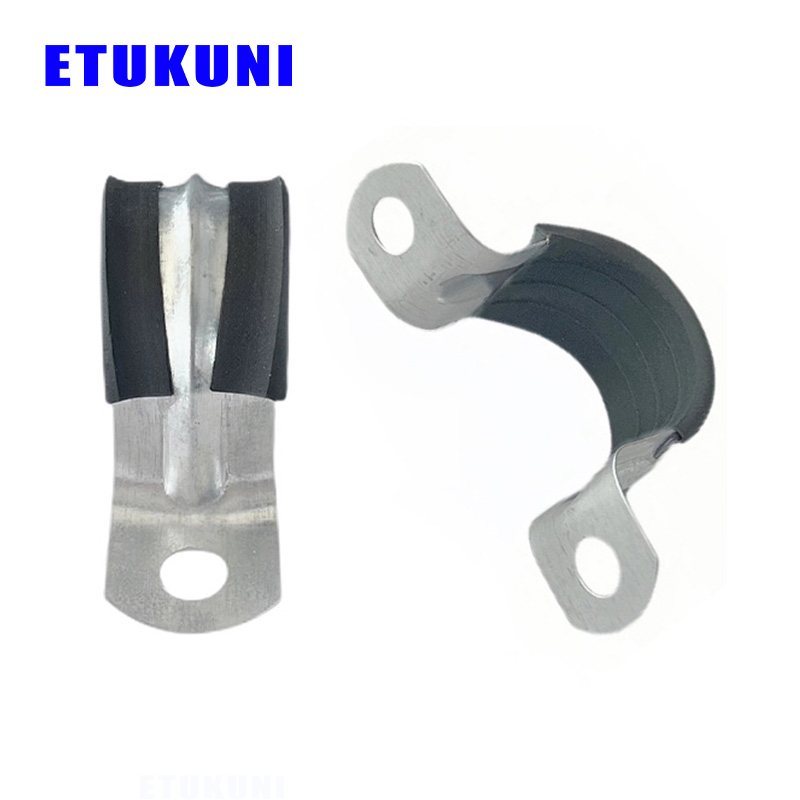

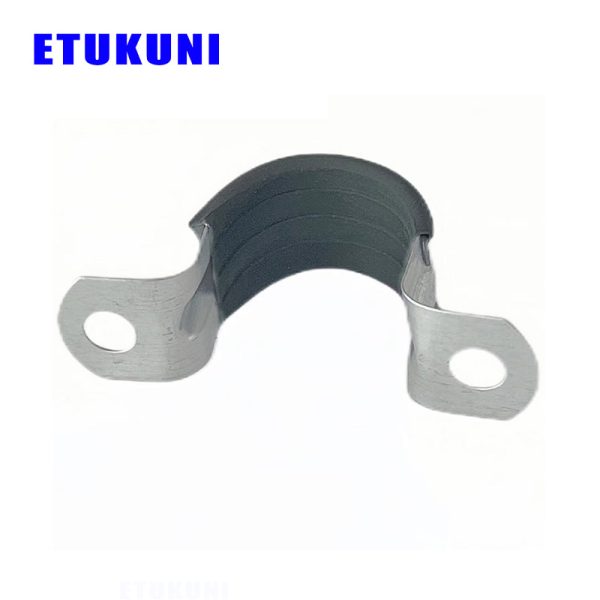

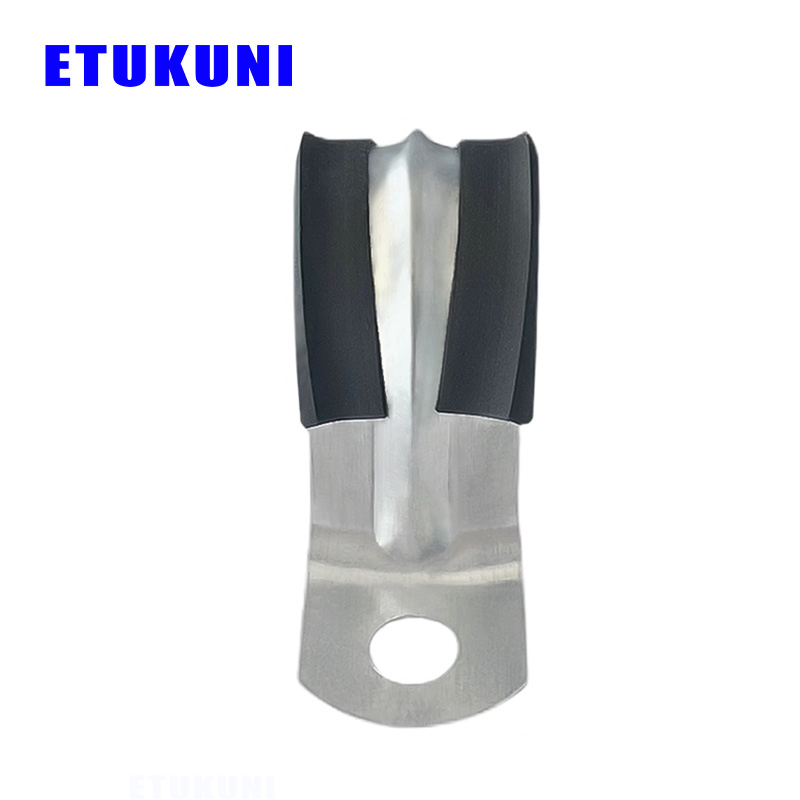

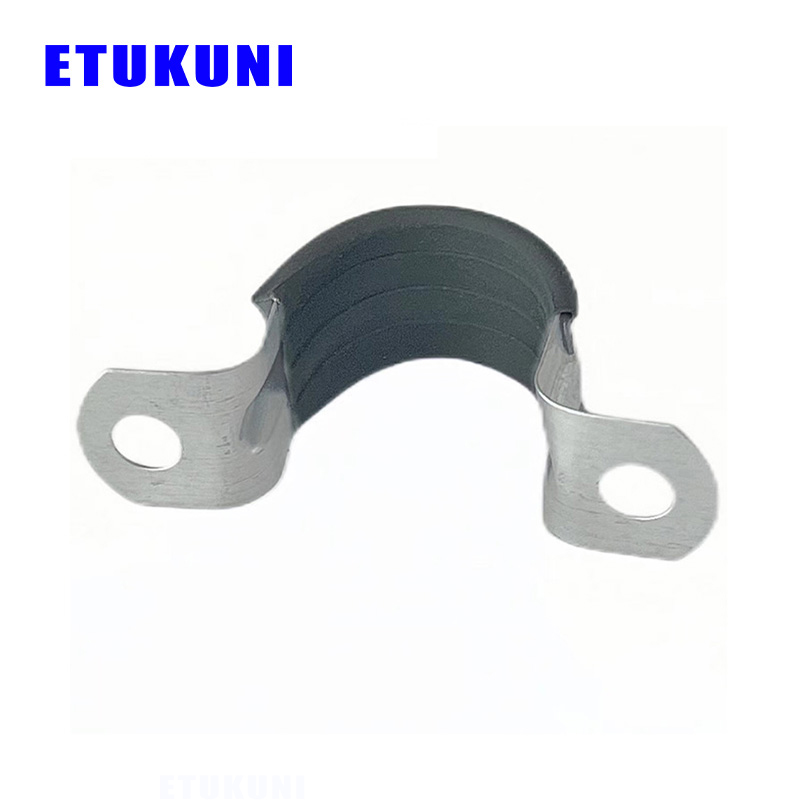

Easy-Install Stainless Steel Φ8 Rubber Lined Saddle Pipe Clamps

Product Details

Customization:	Available
Standard:	Standard
Material:	Stainless Steel, Iron

Still deciding? Get samples of US$ 0.01/Piece !

Description

Product Description

Saddle pipe clamps address three critical needs:

Protection: Steel-rubber layers safeguard wires from mechanical damage.
Durability: Rugged build withstands extreme forces without failure.
Cost efficiency: Corrosion resistance extends lifespan, minimizing downtime and expenses.

Material :

No.	Material	Band	Housing	Screw	Model suffix
1	W1	Zinc plated steel	Zinc plated steel	Zinc plated steel	W1
2	W4	201SS	201SS	201SS	W4-1
3		301SS	301SS	301SS	W4-2
4		304SS	304SS	304SS	W4-3

Product Parameters

No.	Clampingrange	Bandwidth (mm)	Bandthickness(mm)	aperture (mm)
No.	(mm)	Bandwidth (mm)	Bandthickness(mm)	aperture (mm)
1	Φ4	12	0.6	5.3
2	Φ6	12	0.6	5.3
3	Φ8	12	0.6	5.3
4	Φ10	12	0.6	5.3
5	Φ12	12	0.6	5.3
6	Φ14	12	0.8	5.3
7	Φ16	12	0.8	5.3
8	Φ18	12	0.8	5.3
9	Φ20	12	0.8	5.3
10	Φ22	12	0.8	5.3
11	Φ24	12	0.8	5.3
12	Φ26	12	0.8	5.3
13	Φ28	12	0.8	5.3
14	Φ30	12	0.8	5.3
15	Φ32	12	0.8	5.3
16	Φ34	12	0.8	5.3
17	Φ36	12	0.8	5.3
18	Φ38	12	0.8	5.3
19	Φ40	12	0.8	5.3
20	Φ42	12	0.8	5.3
21	Φ44	12	0.8	5.3
22	Φ46	12	0.8	5.3
23	Φ48	12	0.8	5.3
24	Φ50	12	0.8	5.3
25	Φ6	15	0.6	6.4
26	Φ8	15	0.6	6.4
27	Φ10	15	0.6	6.4
28	Φ12	15	0.6	6.4
29	Φ14	15	0.6	6.4
30	Φ16	15	0.8	6.4
31	Φ18	15	0.8	6.4
32	Φ20	15	0.8	6.4
33	Φ22	15	0.8	6.4
34	Φ24	15	0.8	6.4
35	Φ26	15	0.8	6.4
36	Φ28	15	0.8	6.4
37	Φ30	15	0.8	6.4
38	Φ32	15	0.8	6.4
39	Φ34	15	0.8	6.4
40	Φ36	15	0.8	6.4
41	Φ38	15	0.8	6.4
42	Φ40	15	0.8	6.4
43	Φ42	15	0.8	6.4
44	Φ44	15	0.8	6.4
45	Φ46	15	0.8	6.4
46	Φ48	15	0.8	6.4
47	Φ50	15	0.8	6.4
48	Φ14	20	0.8	8.4
49	Φ16	20	0.8	8.4
50	Φ18	20	0.8	8.4
51	Φ20	20	0.8	8.4
52	Φ22	20	0.8	8.4
53	Φ24	20	0.8	8.4
54	Φ26	20	1.0	8.4
55	Φ28	20	1.0	8.4
56	Φ30	20	1.0	8.4
57	Φ32	20	1.0	8.4
58	Φ34	20	1.0	8.4
59	Φ36	20	1.0	8.4
60	Φ38	20	1.0	8.4
61	Φ40	20	1.0	8.4
62	Φ42	20	1.0	8.4
63	Φ44	20	1.0	8.4
64	Φ46	20	1.0	8.4
65	Φ48	20	1.0	8.4
66	Φ50	20	1.0	8.4
67	Φ16	25	1.0	10.5
68	Φ18	25	1.0	10.5
69	Φ20	25	1.0	10.5
70	Φ22	25	1.0	10.5
71	Φ24	25	1.0	10.5
72	Φ26	25	1.0	10.5
73	Φ28	25	1.0	10.5
74	Φ30	25	1.0	10.5
75	Φ32	25	1.0	10.5
76	Φ34	25	1.0	10.5
77	Φ36	25	1.0	10.5
78	Φ38	25	1.0	10.5
79	Φ40	25	1.0	10.5
80	Φ42	25	1.0	10.5
81	Φ44	25	1.0	10.5
82	Φ46	25	1.0	10.5
83	Φ48	25	1.0	10.5
84	Φ50	25	1.0	10.5

Wide Range of Application

Yuebang International Co,td

Yuebang International is a professional industrial and trade integrated company in China that integrates product design, scheme planning, and project implementation. It specializes in solving the problems of supporting and customizing water hoses and interface components. Due to its good quality, reasonable price, and excellent after-sales service, our products enjoy a high reputation in industries such as agriculture, construction, and firefighting in the United States, Europe, and Southeast Asia.

Our Factory

facade of an industrial building and warehouse with freight cars in length

设备 (2)√

工程6√

工内√

机器8√

工厂8√

Mobile Aisle Racking System in Distribution Warehouse

包装√

Set design, research and development,production in one

Corporate Culture

Business Philosophy

integrity, enthusiasm, enterprising, pragmatic

Company Vision

Development is taking into account the interests of customers and thecompany

Company purpose

Quality and deliverytime first, customer rest assured, optimize costs

Our Certification

Our Qualifications

Products are exported to Europe,the United States,Canada,Australia,JapanSouthKorea and other countries, and obtain a good reputation.
