Product Description
Specialty

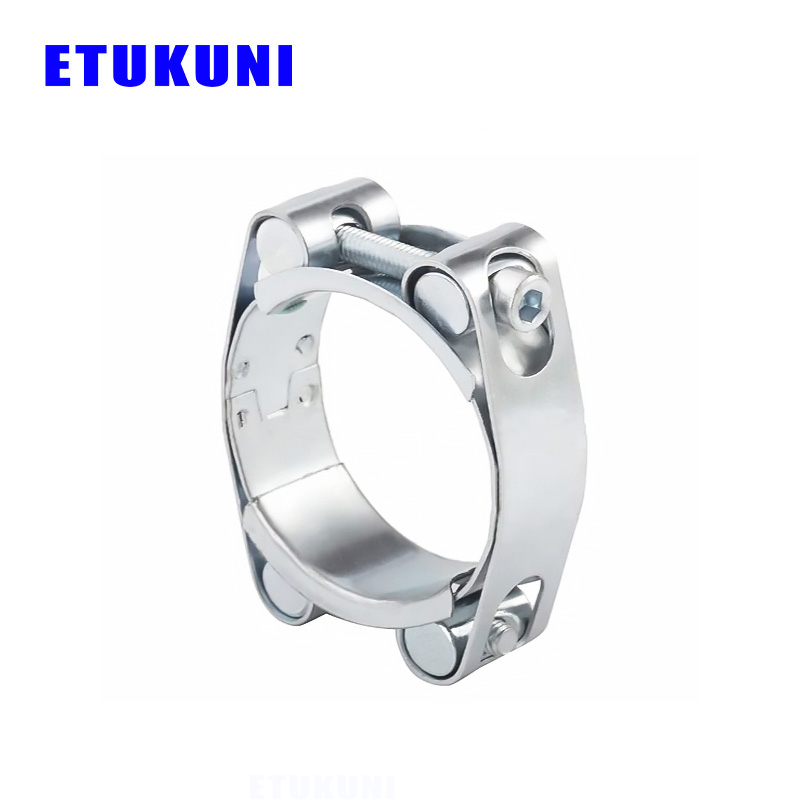

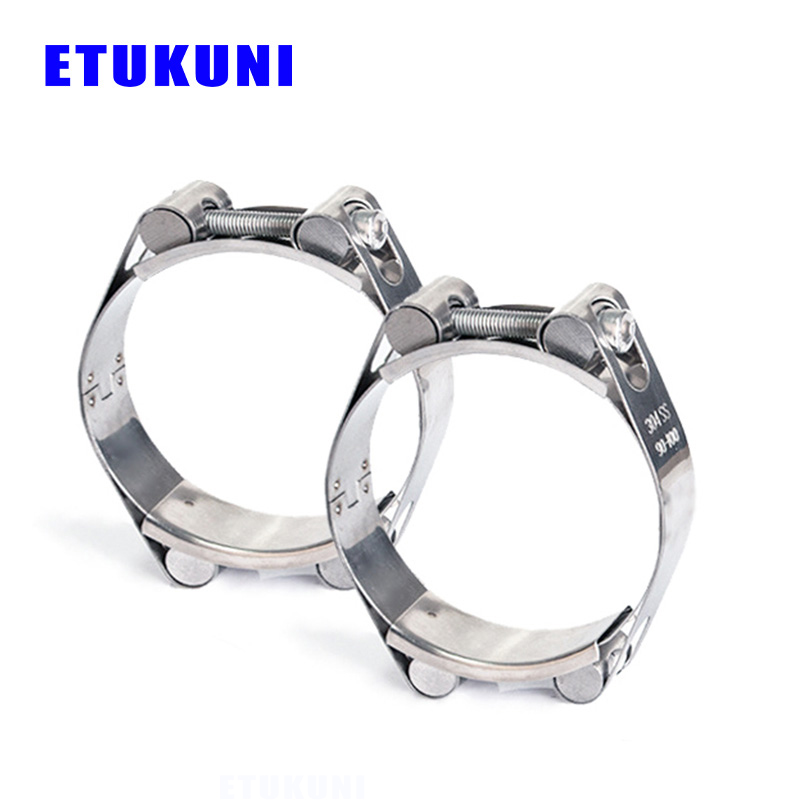

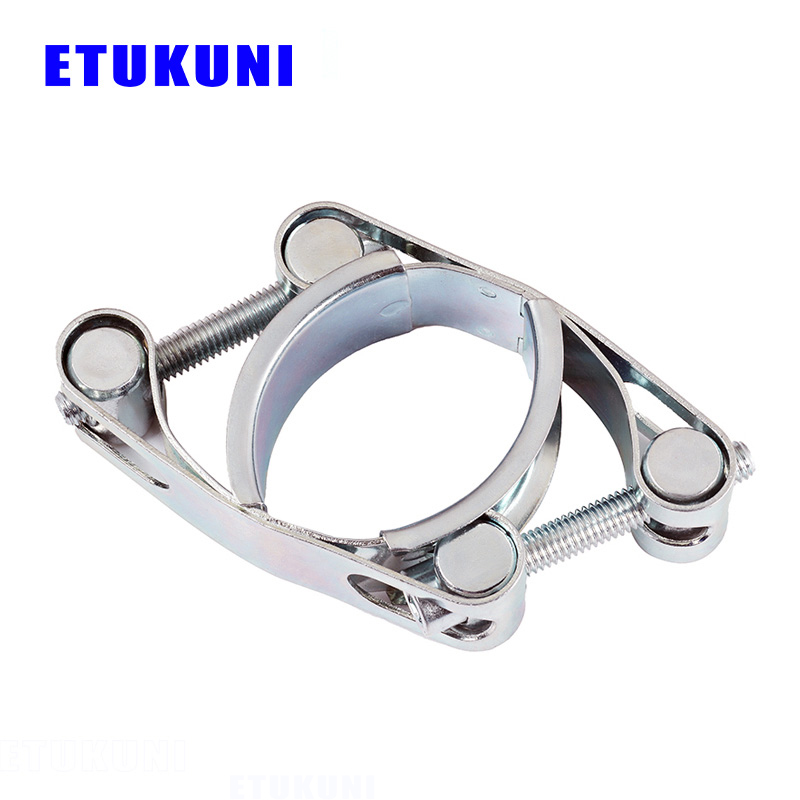

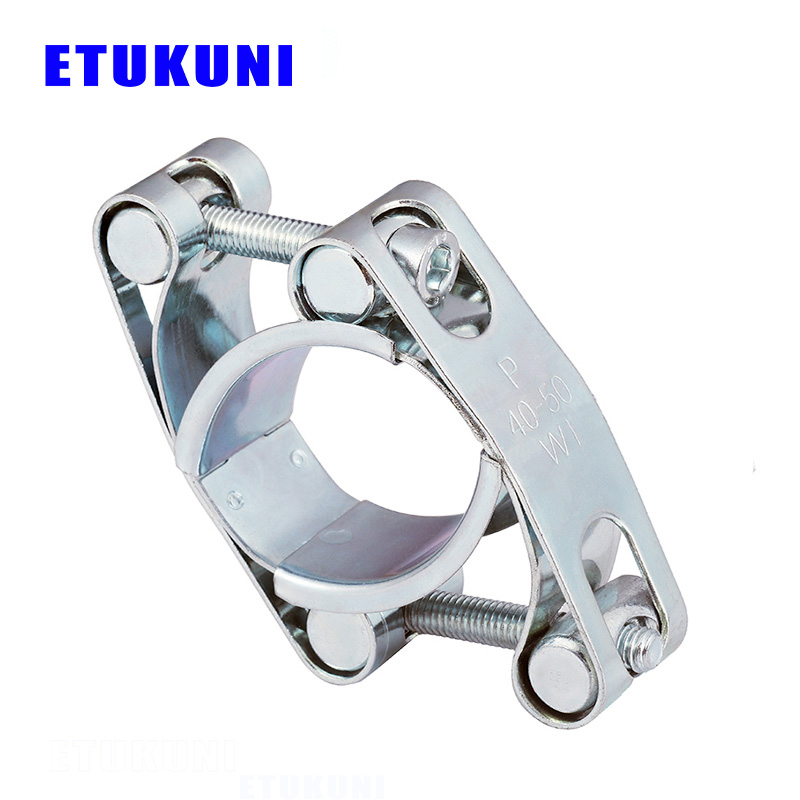

When you need reliable hose connections, our Heavy Duty Hose Clamps are the perfect solution. Designed for tough conditions, these Clamps offer exceptional durability, corrosion resistance, and easy installation. Thanks to their reinforced stainless steel or galvanized steel construction and precision-polished surface, they create a leak-proof seal while guarding hoses against abrasion, vibration, and extreme pressures in automotive, marine, or industrial settings.
Here’s why professionals trust our Heavy Duty Hose Clamps:
✔ Dual-Bolt Reinforcement: The double-bolt design ensures even force distribution, delivering 40% more consistent tension than single-bolt clamps—perfect for high-pressure systems up to 700 PSI.
✔ Premium Materials: Made from 316 stainless steel or hot-dip galvanized steel, these clamps withstand rust, chemicals, and saltwater, making them ideal for offshore or chemical processing.
✔ Non-Slip Grip: Laser-polished inner bands and rounded edges protect hoses, while toothed ridges prevent slippage.
✔ Easy Installation: Pre-drilled holes and hex-nut bolts enable fast tightening with standard wrenches, cutting assembly time by 20% in industrial applications.
Material：
| No. | Material | Band | Housing | Screw |
| 1 | W1 | Zinc plated steel | Zinc plated steel | Zinc plated steel |
| 2 | W2 | 201SS | 201SS | Zinc plated steel |
| 3 | 301SS | 301SS | ||
| 4 | 304SS | 304SS | ||
| 5 | W4 | 201SS | 201SS | 201SS |
| 6 | 301SS | 301SS | 301SS | |
| 7 | 304SS | 304SS | 304SS | |
| 8 | W5 | 316SS | 316SS | 316SS |
Product Parameters
| No. | Thickness*width (mm) |
Diameterrange (mm) |
Bolt | No. | Thickness*width (mm) |
Diameterrange (mm) |
Bolt |
| 1 | 1.0*20 | 30-40 | M6*50 | 20 | 1.0*24 | 60-70 | M8*60 |
| 2 | 1.0*20 | 35-45 | M6*50 | 21 | 1.0*24 | 65-75 | M8*60 |
| 3 | 1.0*20 | 40-50 | M6*50 | 22 | 1.0*24 | 70-80 | M8*60 |
| 4 | 1.0*20 | 45-55 | M6*50 | 23 | 1.0*24 | 75-85 | M8*60 |
| 5 | 1.0*20 | 50-60 | M6*50 | 24 | 1.0*24 | 80-90 | M8*60 |
| 6 | 1.0*20 | 55-65 | M6*50 | 25 | 1.0*24 | 85-95 | M8*60 |
| 7 | 1.0*20 | 60-70 | M6*50 | 26 | 1.0*24 | 90-100 | M8*60 |
| 8 | 1.0*20 | 65-75 | M6*50 | 27 | 1.0*24 | 95-105 | M8*60 |
| 9 | 1.0*20 | 70-80 | M6*50 | 28 | 1.0*24 | 100-110 | M8*60 |
| 10 | 1.0*20 | 75-85 | M6*50 | 29 | 1.0*24 | 105-115 | M8*60 |
| 11 | 1.0*20 | 80-90 | M6*50 | 30 | 1.0*24 | 110-120 | M8*60 |
| 12 | 1.0*20 | 85-95 | M6*50 | 31 | 1.0*24 | 115-125 | M8*60 |
| 13 | 1.0*20 | 90-100 | M6*50 | 32 | 1.0*24 | 120-130 | M8*60 |
| 14 | 1.0*20 | 95-105 | M6*50 | 33 | 1.0*24 | 125-135 | M8*60 |
| 15 | 1.0*20 | 100-110 | M6*50 | 34 | 1.0*24 | 130-140 | M8*60 |
| 16 | 1.0*20 | 105-115 | M6*50 | 35 | 1.0*24 | 140-150 | M8*60 |
| 17 | 1.0*20 | 110-120 | M6*50 | 36 | 1.0*24 | 150-160 | M8*60 |
| 18 | 1.0*20 | 115-125 | M6*50 | 37 | 1.0*24 | 160-170 | M8*60 |
| 19 | 1.0*20 | 120-130 | M6*50 | 38 | 1.0*24 | 170-180 | M8*60 |
