Product Description

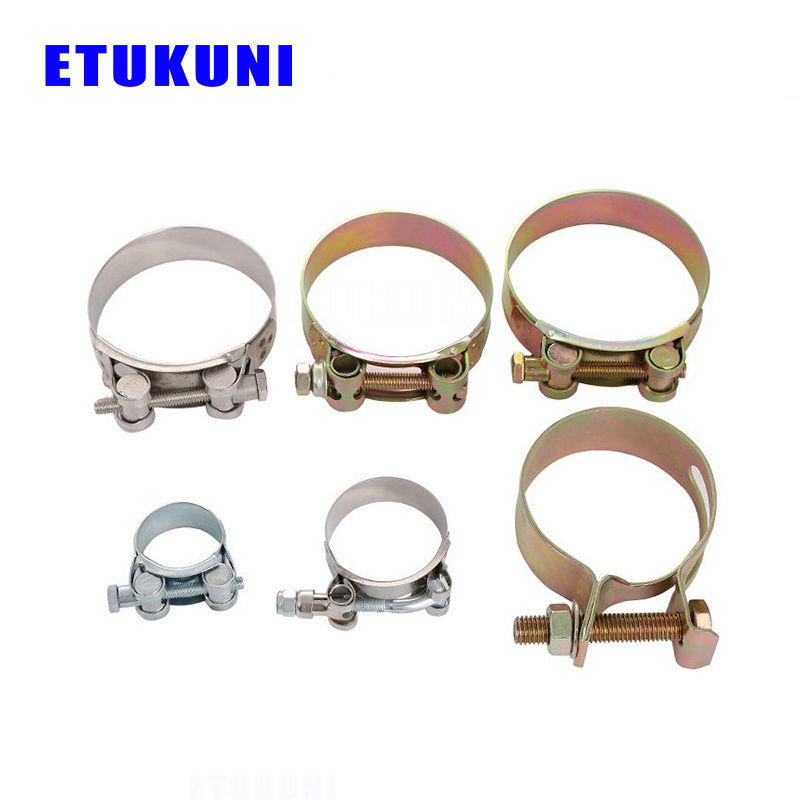

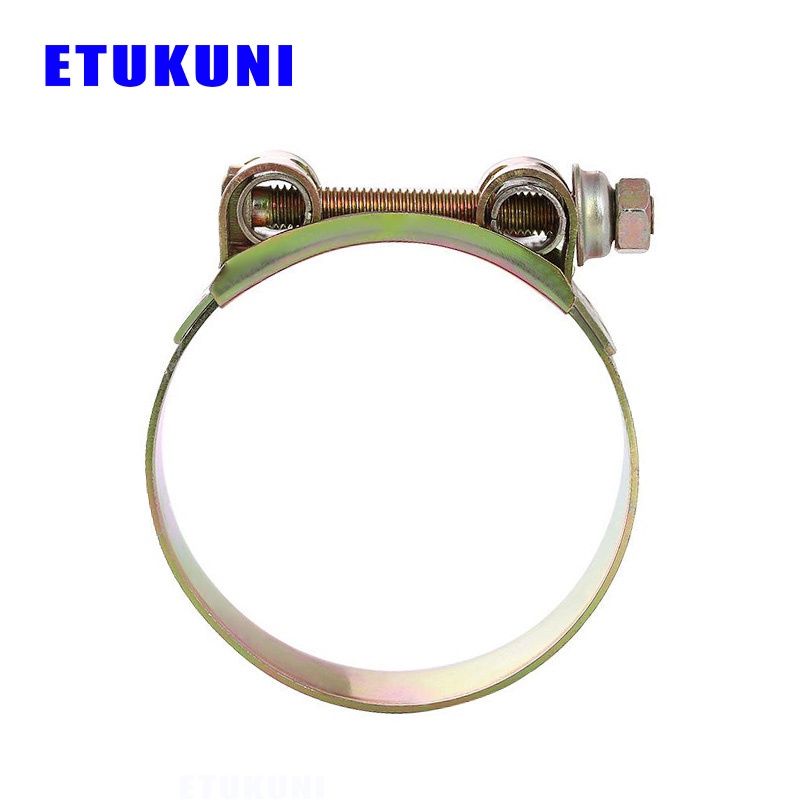

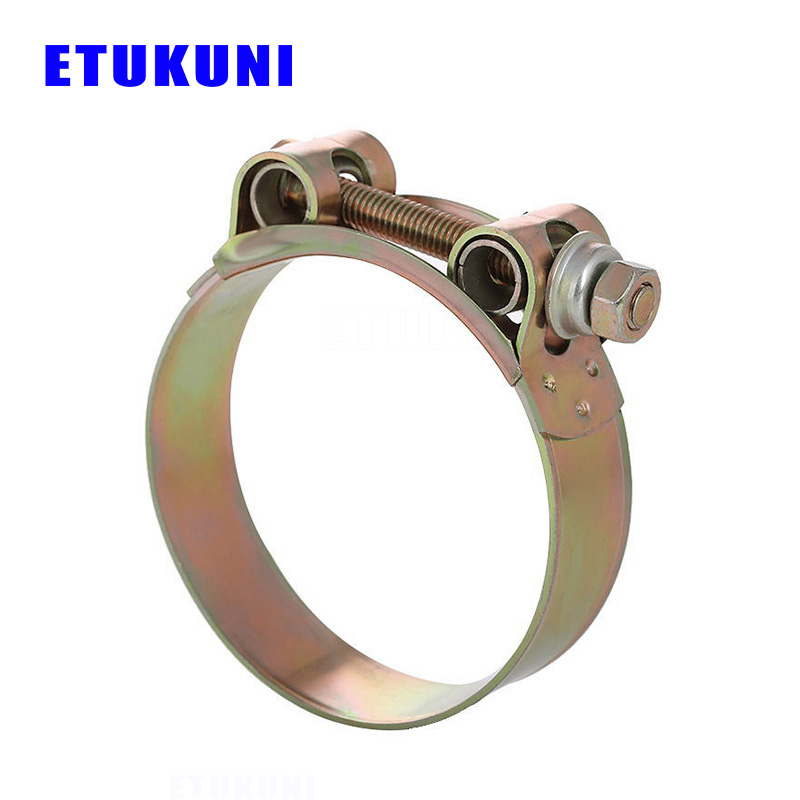

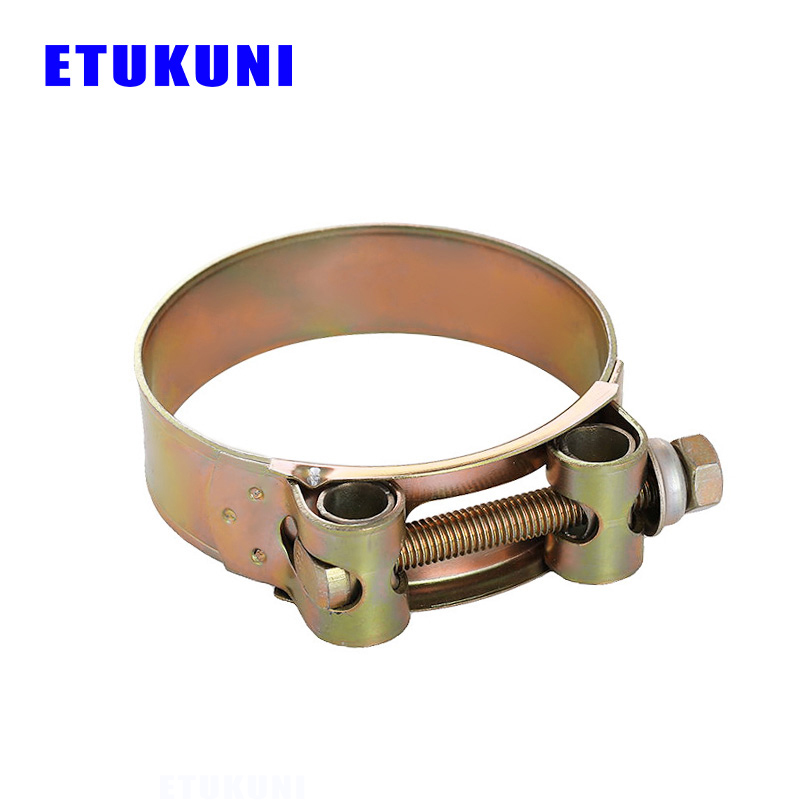

Built for longevity, heavy duty hose clamps leverage stainless steel to endure extreme temperatures and mechanical stress. The hollow bolt maintains consistent torque, while rounded edges protect hoses during thermal shifts. Whether in construction machinery or marine engines, these Single Hollow Bolt Hose Clamps outlast conventional options with zero maintenance.
Material:
| No. | Material | Band | Housing | Screw |
| 1 | W1 | Zinc plated steel | Zinc plated steel | Zinc plated steel |
| 2 | W2 | 201SS | 201SS | Zinc plated steel |
| 3 | 301SS | 301SS | ||
| 4 | 304SS | 304SS | ||
| 5 | W4 | 201SS | 201SS | 201SS |
| 6 | 301SS | 301SS | 301SS | |
| 7 | 304SS | 304SS | 304SS | |
| 8 | W5 | 316SS | 316SS | 316SS |
Product Parameters
| No. | Thickness*width | Diameter range | Bolt | No. | Thickness*width | Diameter range | Bolt |
| (mm) | (mm) | (mm) | (mm) | ||||
| 1 | 1.0*20 | 30-40 | M6*50 | 20 | 1.0*24 | 60-70 | M8*60 |
| 2 | 1.0*20 | 35-45 | M6*50 | 21 | 1.0*24 | 65-75 | M8*60 |
| 3 | 1.0*20 | 40-50 | M6*50 | 22 | 1.0*24 | 70-80 | M8*60 |
| 4 | 1.0*20 | 45-55 | M6*50 | 23 | 1.0*24 | 75-85 | M8*60 |
| 5 | 1.0*20 | 50-60 | M6*50 | 24 | 1.0*24 | 80-90 | M8*60 |
| 6 | 1.0*20 | 55-65 | M6*50 | 25 | 1.0*24 | 85-95 | M8*60 |
| 7 | 1.0*20 | 60-70 | M6*50 | 26 | 1.0*24 | 90-100 | M8*60 |
| 8 | 1.0*20 | 65-75 | M6*50 | 27 | 1.0*24 | 95-105 | M8*60 |
| 9 | 1.0*20 | 70-80 | M6*50 | 28 | 1.0*24 | 100-110 | M8*60 |
| 10 | 1.0*20 | 75-85 | M6*50 | 29 | 1.0*24 | 105-115 | M8*60 |
| 11 | 1.0*20 | 80-90 | M6*50 | 30 | 1.0*24 | 110-120 | M8*60 |
| 12 | 1.0*20 | 85-95 | M6*50 | 31 | 1.0*24 | 115-125 | M8*60 |
| 13 | 1.0*20 | 90-100 | M6*50 | 32 | 1.0*24 | 120-130 | M8*60 |
| 14 | 1.0*20 | 95-105 | M6*50 | 33 | 1.0*24 | 125-135 | M8*60 |
| 15 | 1.0*20 | 100-110 | M6*50 | 34 | 1.0*24 | 130-140 | M8*60 |
| 16 | 1.0*20 | 105-115 | M6*50 | 35 | 1.0*24 | 140-150 | M8*60 |
| 17 | 1.0*20 | 110-120 | M6*50 | 36 | 1.0*24 | 150-160 | M8*60 |
| 18 | 1.0*20 | 115-125 | M6*50 | 37 | 1.0*24 | 160-170 | M8*60 |
| 19 | 1.0*20 | 120-130 | M6*50 | 38 | 1.0*24 | 170-180 | M8*60 |
