Product Description

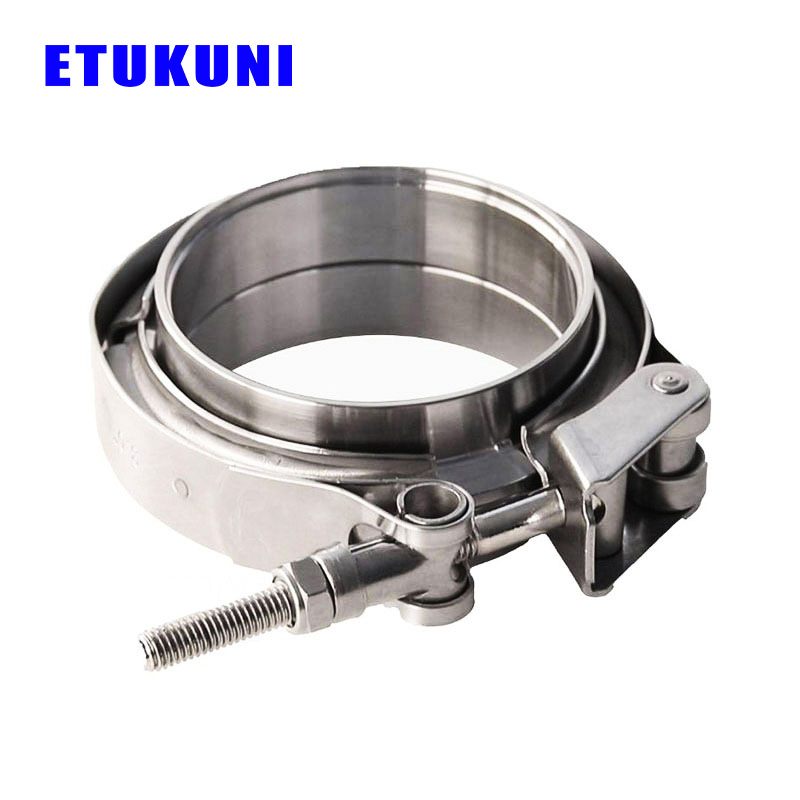

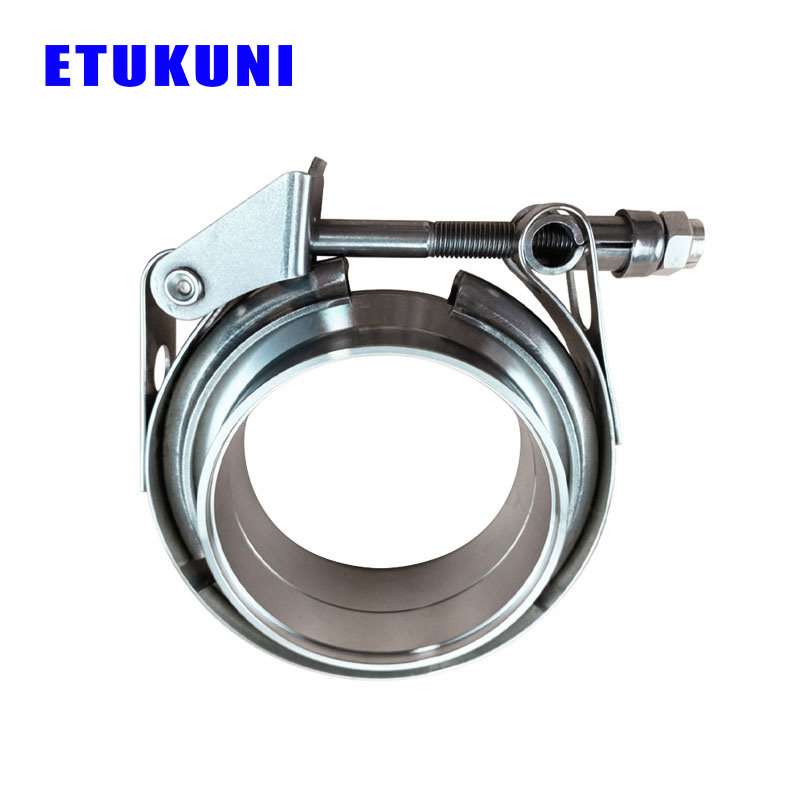

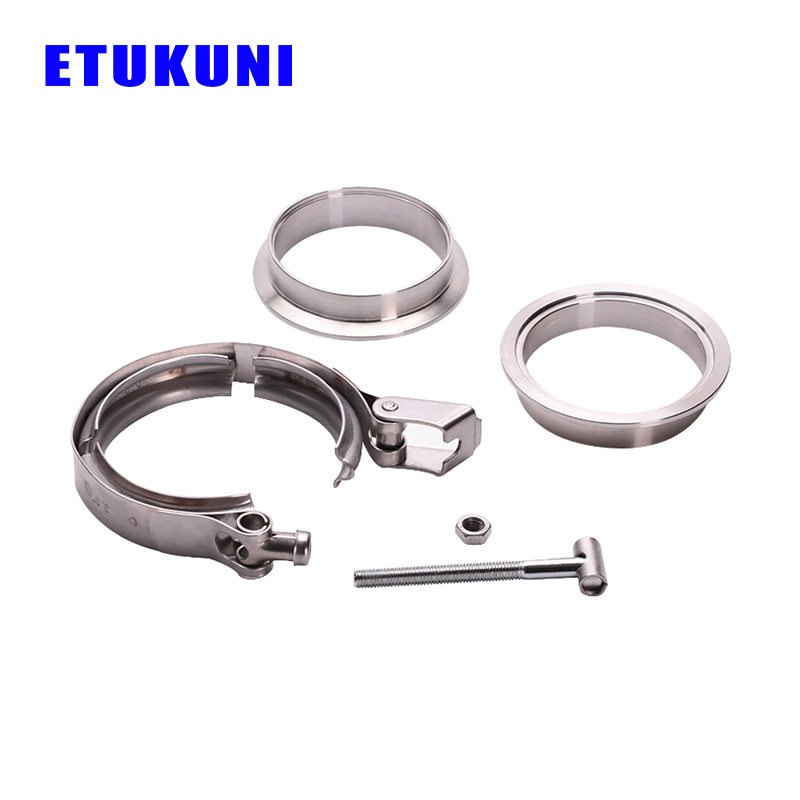

304 Stainless Steel Quick Release V Band Clamps with Flanges for Exhaust Pipe
Features and benefits of the stainless Steel Quick Release V Band Clamps:
1. Durable and long-lasting, thanks to high-quality stainless steel construction
2. Available in different sizes to fit a wide range of applications

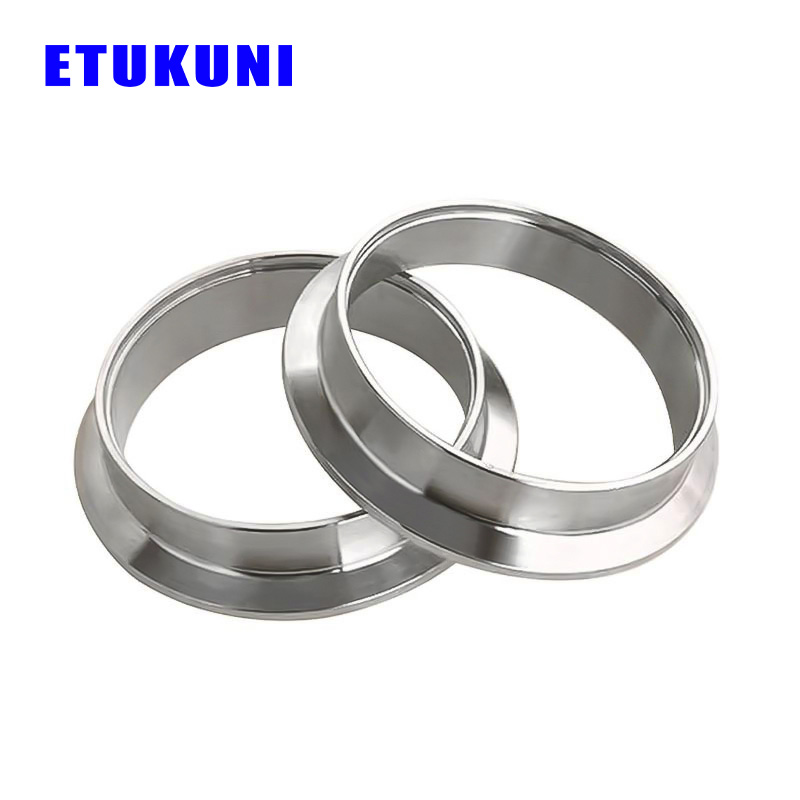

3. Male and female flange designs ensure a superior seal without the need for a gasket
4. The lock nut mechanism makes it easy to install and remove
Material
| Flange Material | Clamp Material | Lock Nut |
| Stainless Steel 304 | Stainless Steel 304 | High-Quality Slot Alloy Lock Nuts |
Product Parameters
| No. | Specifications Inch |
Flange ID(mm) | Match Pipe OD(mm) | Suggested install torque |
| 1 | 1.5 | 38.9 | 38.1 | 17Nm |
| 2 | 1.75 | 45.3 | 44.5 | 17Nm |
| 3 | 2 | 51.6 | 50.8 | 17Nm |
| 4 | 2.25 | 57.9 | 57.1 | 17Nm |
| 5 | 2.5 | 64.3 | 63.5 | 17Nm |
| 6 | 2.75 | 70.6 | 69.8 | 17Nm |
| 7 | 3 | 77 | 76.2 | 17Nm |
| 8 | 3.25 | 83.3 | 82.5 | 17Nm |
| 9 | 3.5 | 89.7 | 88.9 | 17Nm |
| 10 | 3.75 | 96.1 | 95.3 | 17Nm |
| 11 | 4 | 102.4 | 101.6 | 17Nm |
| 12 | 4.5 | 115.1 | 114.3 | 17Nm |
| 13 | 5.5 | 127.8 | 127 | 17Nm |
| 14 | 6 | 153.2 | 152.4 | 17Nm |
