Product Description

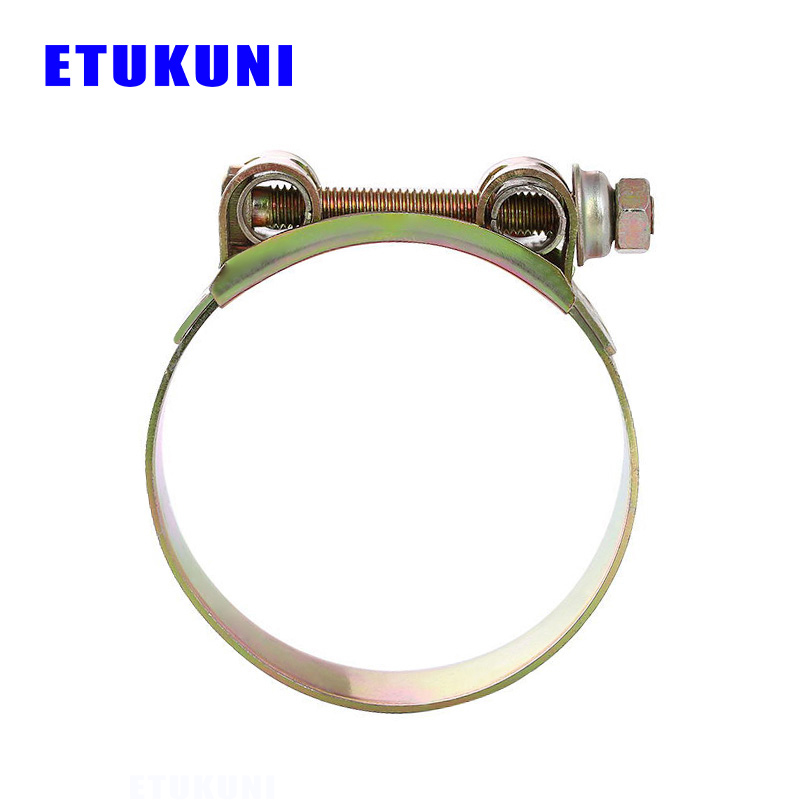

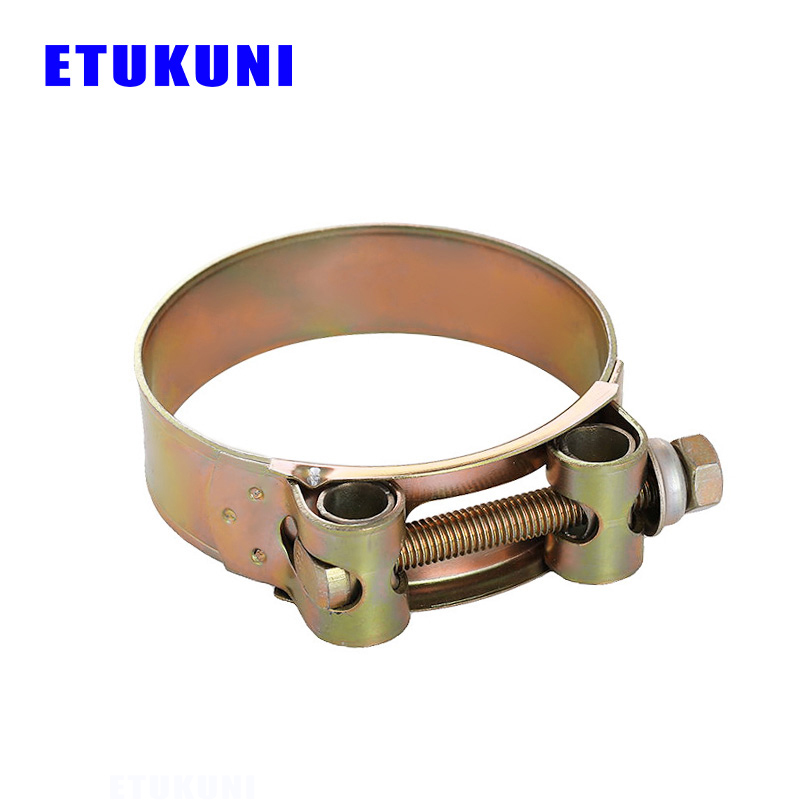

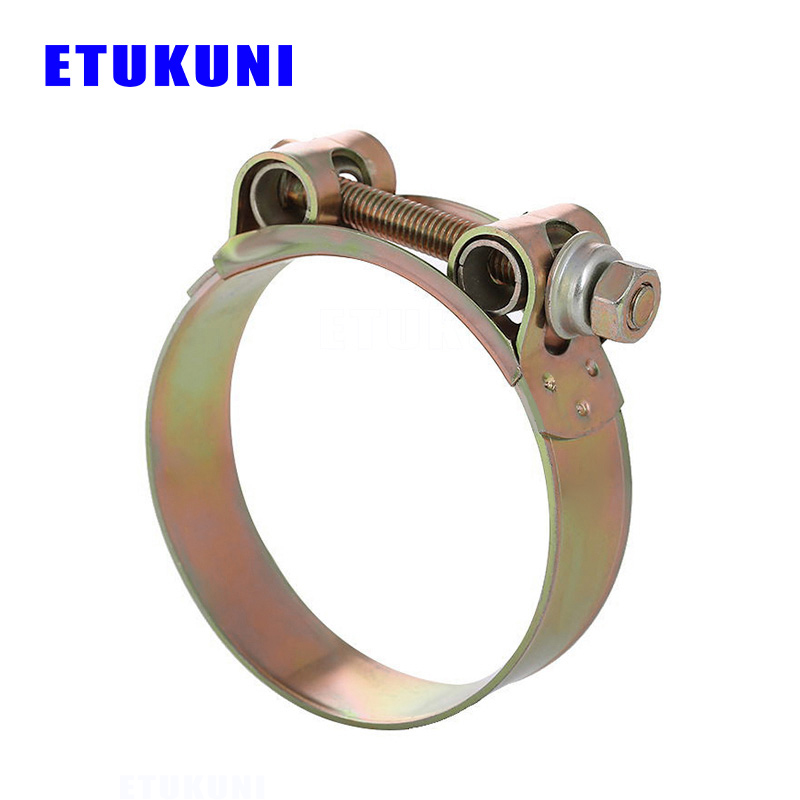

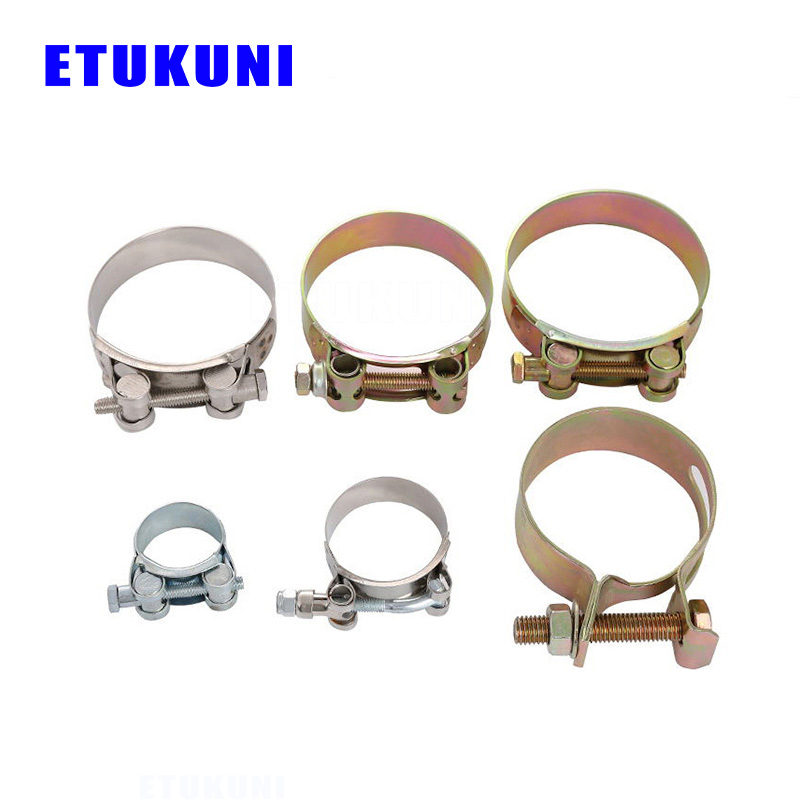

In oil and gas pipelines, Single Hollow Bolt Hose Clamps provide unmatched reliability. The stainless steel body withstands acidic fluids and high pressure, while the hollow bolt simplifies maintenance in tight spaces. Unlike solid-bolt clamps, these heavy duty hose clamps reduce assembly time by 30%, making them a top choice for refinery or desalination plants.
Material:
| No. | Material | Band | Housing | Screw |
| 1 | W1 | Zinc plated steel | Zinc plated steel | Zinc plated steel |
| 2 | W2 | 201SS | 201SS | Zinc plated steel |
| 3 | 301SS | 301SS | ||
| 4 | 304SS | 304SS | ||
| 5 | W4 | 201SS | 201SS | 201SS |
| 6 | 301SS | 301SS | 301SS | |
| 7 | 304SS | 304SS | 304SS | |
| 8 | W5 | 316SS | 316SS | 316SS |
Product Parameters
| No. | Thickness*width | Diameter range | Bolt | No. | Thickness*width | Diameter range | Bolt |
| (mm) | (mm) | (mm) | (mm) | ||||
| 1 | 1.0*20 | 30-40 | M6*50 | 20 | 1.0*24 | 60-70 | M8*60 |
| 2 | 1.0*20 | 35-45 | M6*50 | 21 | 1.0*24 | 65-75 | M8*60 |
| 3 | 1.0*20 | 40-50 | M6*50 | 22 | 1.0*24 | 70-80 | M8*60 |
| 4 | 1.0*20 | 45-55 | M6*50 | 23 | 1.0*24 | 75-85 | M8*60 |
| 5 | 1.0*20 | 50-60 | M6*50 | 24 | 1.0*24 | 80-90 | M8*60 |
| 6 | 1.0*20 | 55-65 | M6*50 | 25 | 1.0*24 | 85-95 | M8*60 |
| 7 | 1.0*20 | 60-70 | M6*50 | 26 | 1.0*24 | 90-100 | M8*60 |
| 8 | 1.0*20 | 65-75 | M6*50 | 27 | 1.0*24 | 95-105 | M8*60 |
| 9 | 1.0*20 | 70-80 | M6*50 | 28 | 1.0*24 | 100-110 | M8*60 |
| 10 | 1.0*20 | 75-85 | M6*50 | 29 | 1.0*24 | 105-115 | M8*60 |
| 11 | 1.0*20 | 80-90 | M6*50 | 30 | 1.0*24 | 110-120 | M8*60 |
| 12 | 1.0*20 | 85-95 | M6*50 | 31 | 1.0*24 | 115-125 | M8*60 |
| 13 | 1.0*20 | 90-100 | M6*50 | 32 | 1.0*24 | 120-130 | M8*60 |
| 14 | 1.0*20 | 95-105 | M6*50 | 33 | 1.0*24 | 125-135 | M8*60 |
| 15 | 1.0*20 | 100-110 | M6*50 | 34 | 1.0*24 | 130-140 | M8*60 |
| 16 | 1.0*20 | 105-115 | M6*50 | 35 | 1.0*24 | 140-150 | M8*60 |
| 17 | 1.0*20 | 110-120 | M6*50 | 36 | 1.0*24 | 150-160 | M8*60 |
| 18 | 1.0*20 | 115-125 | M6*50 | 37 | 1.0*24 | 160-170 | M8*60 |
| 19 | 1.0*20 | 120-130 | M6*50 | 38 | 1.0*24 | 170-180 | M8*60 |
