Product Description

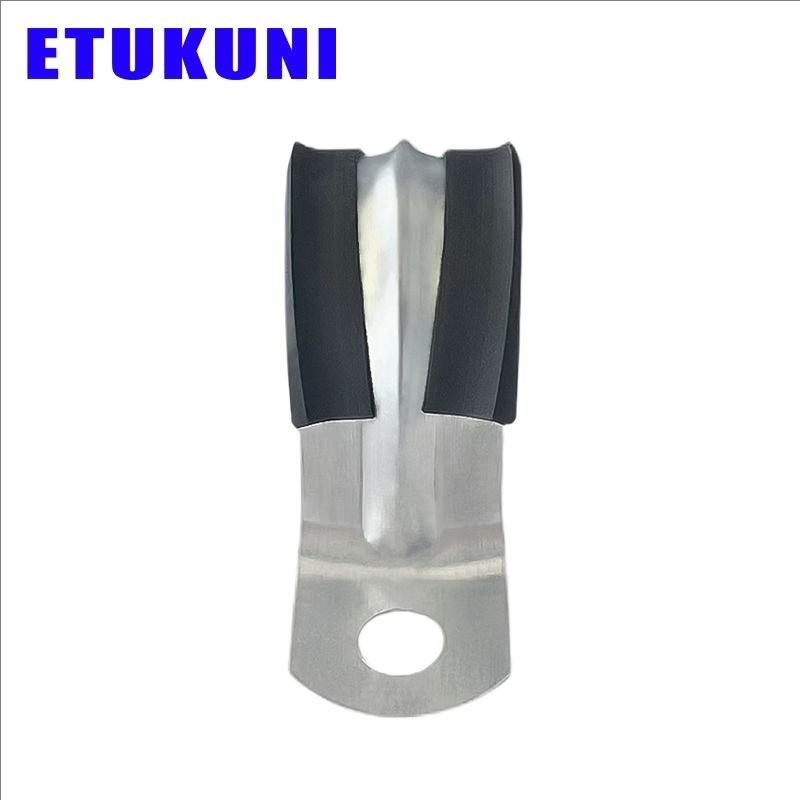

| Product name | Saddle clamp with rubber |
| Bandwidth | 15mm,18mm,19mm customized |
| Thickness | 0.6mm,1.6mm |
| Material | Stainless stee201,304,316,Q235 as per customer's requirements. |
| Samples | Free Samples could be provided after contact |
| Delivery time | Within 7 days to 15days, depending on whether you want to customize, and sample quantity |
| MOQ | 1000pcs |
| Packaging | Plastic bag inside and standard carton, pallet. |
| Shipping Port | Ningbo or Shanghai |
| Certifications | ISO 9001 |
| Surface | Zinc Plate, Polishing, |
| Application | Applicable to engineering plumbing, installation pipes, ventilation pipes, HVAC pipes, PPR pipes |
| Specialty | Widened and thickened, waterproof and anti-rust, anti-corrosion |
Product Parameters
| Tube Outer diameter | Mounting hole center distance | Mounting hole inner diameter(mm) | Bandwidth | Band thickness | Rubber Strip thickness |
| (mm) | (mm) | ||||
| 6 | 28 | 6.5 | 15 | 1.6 | 4 |
| 8 | 30 | 6.5 | 15 | 1.6 | 4 |
| 10 | 32 | 6.5 | 15 | 1.6 | 4 |
| 12 | 38 | 6.5 | 15 | 1.6 | 4 |
| 14 | 41 | 6.5 | 15 | 1.6 | 4 |
| 16 | 41 | 6.5 | 15 | 1.6 | 4 |
| 18 | 42 | 6.5 | 15 | 1.6 | 4 |
| 20 | 45 | 6.5 | 15 | 1.6 | 4 |
| 22 | 50 | 6.5 | 15 | 1.6 | 4 |
| 24 | 53 | 6.5 | 15 | 1.6 | 4 |
| 26 | 54 | 6.5 | 15 | 1.6 | 4 |
| 28 | 55 | 6.5 | 15 | 1.6 | 4 |
| 30 | 59 | 6.5 | 15 | 1.6 | 4 |
| 32 | 57 | 6.5 | 15 | 1.6 | 4 |
| 34 | 59 | 6.5 | 15 | 1.6 | 4 |
| 36 | 61 | 6.5 | 15 | 1.6 | 4 |
| 38 | 61 | 6.5 | 15 | 1.6 | 4 |
| 40 | 62 | 6.5 | 15 | 1.6 | 4 |
| 42 | 70 | 6.5 | 15 | 1.6 | 4 |
| 44 | 71 | 6.5 | 15 | 1.6 | 4 |
| 46 | 74 | 6.5 | 15 | 1.6 | 4 |
| 48 | 74 | 6.5 | 15 | 1.6 | 4 |
| 50 | 80 | 6.5 | 15 | 1.6 | 4 |
| 57 | 95 | 6.5 | 15 | 1.6 | 4 |
| 63 | 106 | 6.5 | 15 | 1.6 | 4 |
| 76 | 126 | 6.5 | 15 | 1.6 | 4 |
| 80 | 107 | 6.5 | 15 | 1.6 | 4 |
| 90 | 114 | 6.5 | 15 | 1.6 | 4 |
| 100 | 123 | 6.5 | 15 | 1.6 | 4 |
| 110 | 133 | 6.5 | 15 | 1.6 | 4 |
