Product Description
Features and benefits of Heavy-duty America-type hose clamp

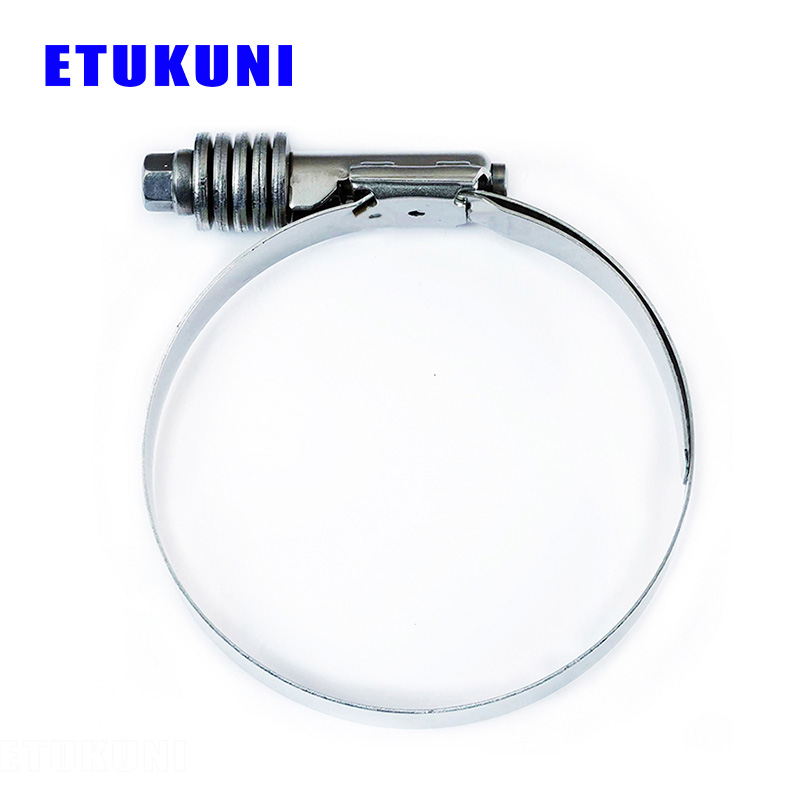

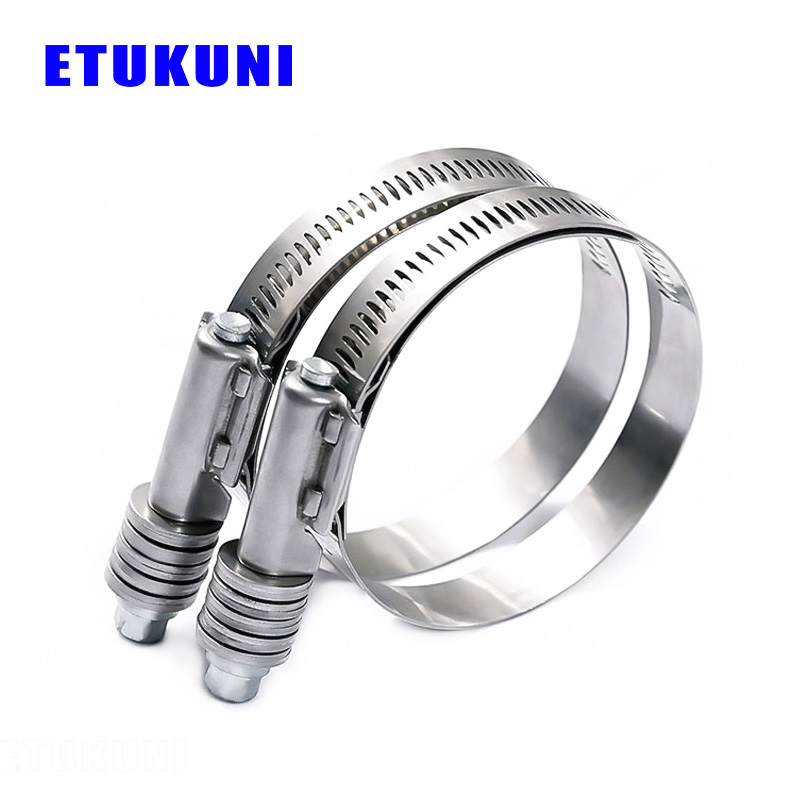

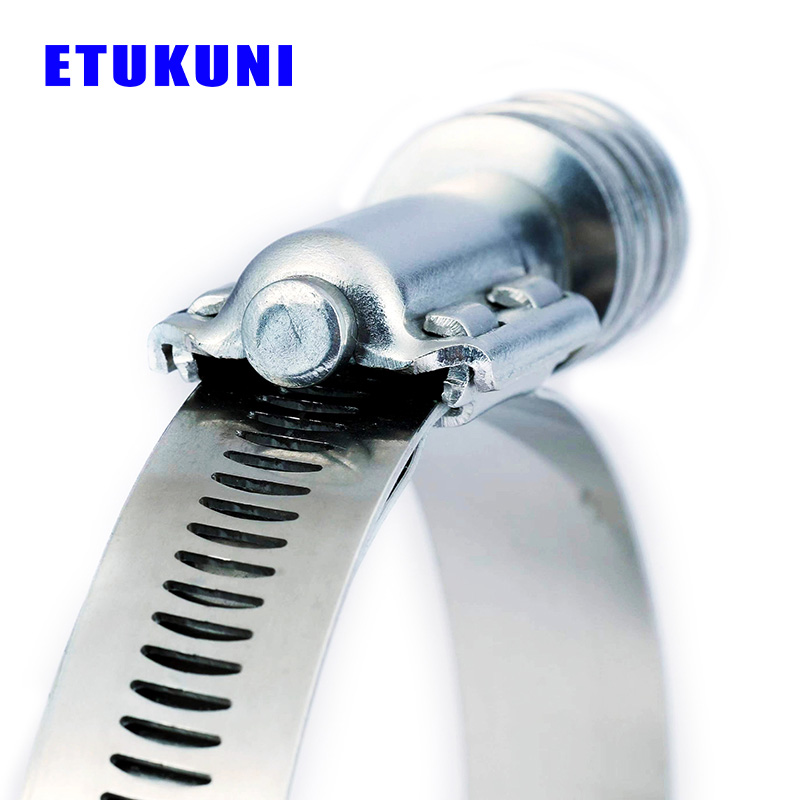

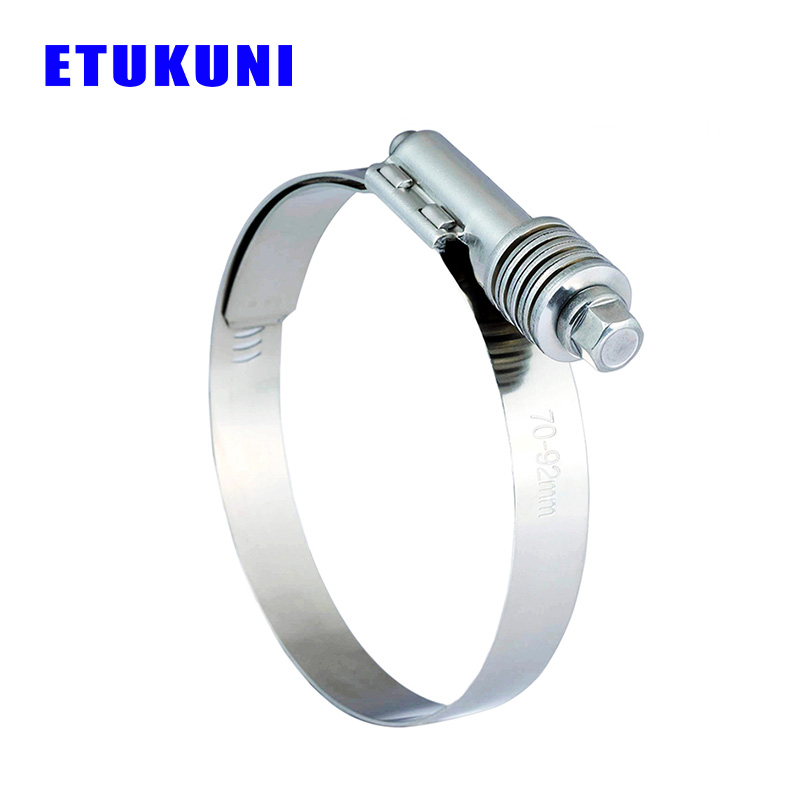

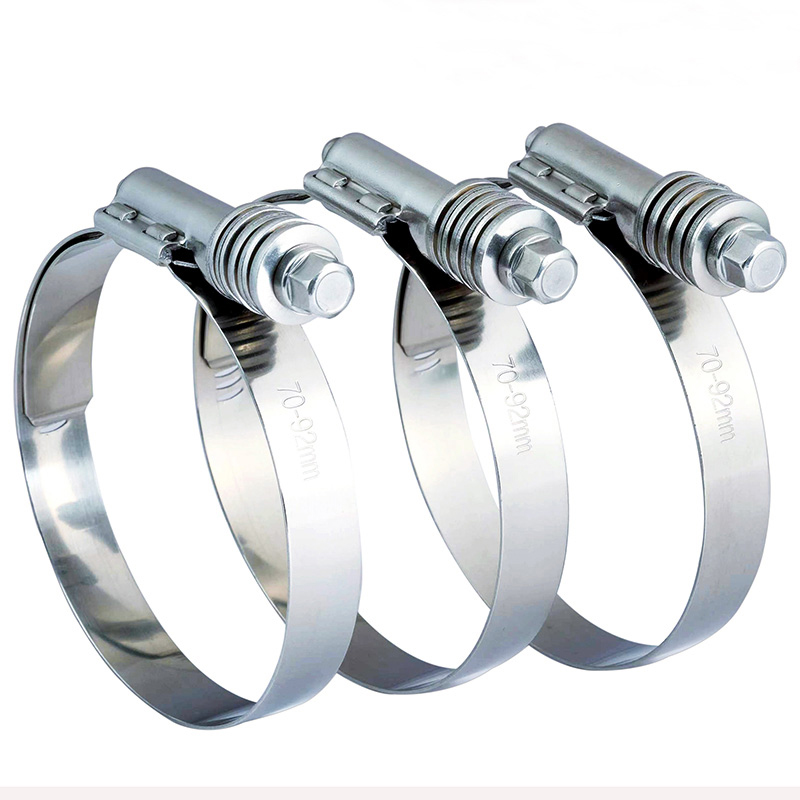

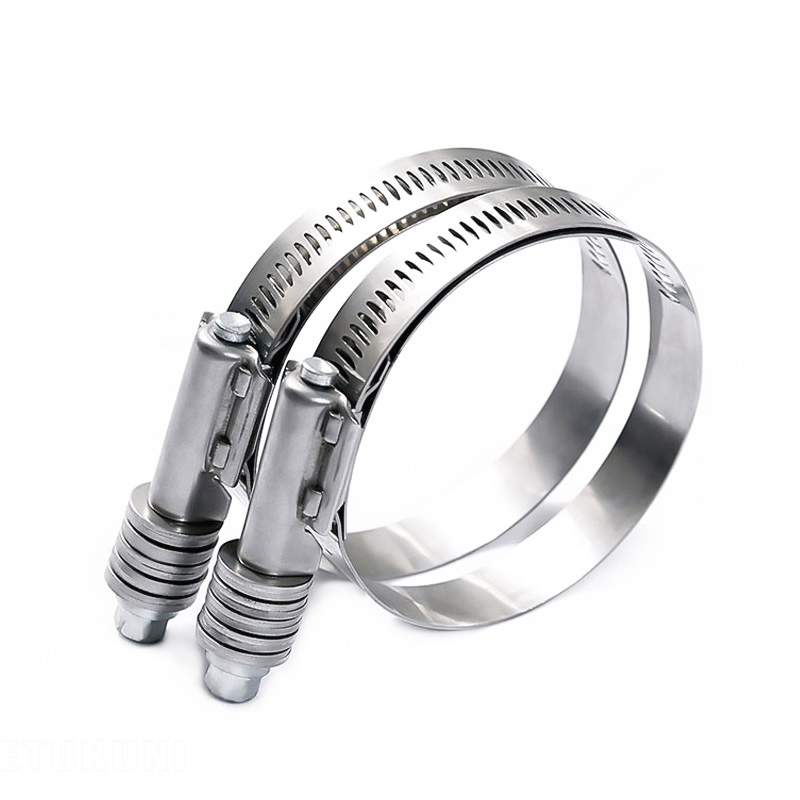

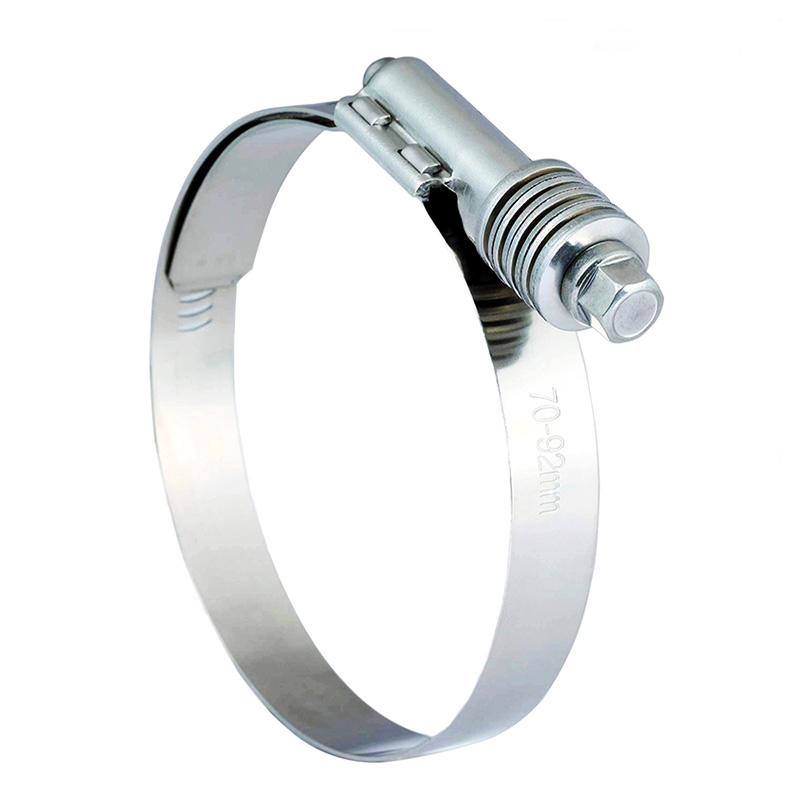

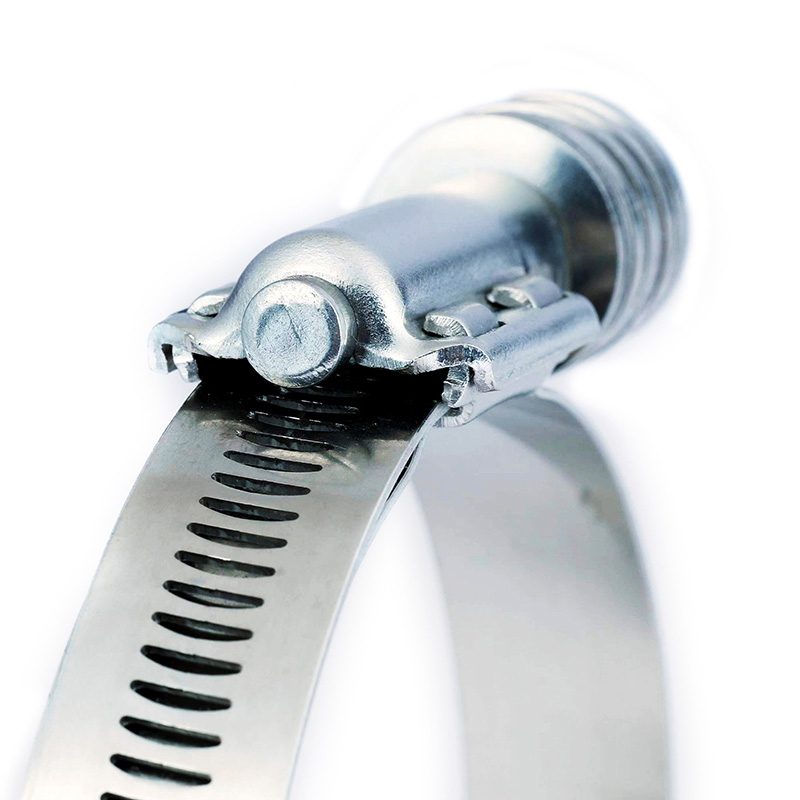

The Heavy Duty Constant Tension America-type Hose Clamp is a high-quality hose clamp that features an adjustable worm gear design made from stainless steel-304. This clamp is built to withstand heavy-duty usage and constant tension, making it a reliable solution for securing pipes and hoses in various applications. Its design allows for easy adjustment and tightening, providing a secure connection that minimizes the risk of leaks and damage to the hose or pipe. The Heavy Duty Constant Tension America-type Hose Clamp is an ideal choice for businesses and professionals who require a durable and reliable hose clamp solution.

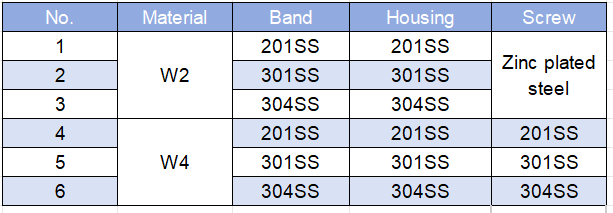

Material:
| No. | Material | Band | Housing | Screw |
| 1 | W2 | 201SS | 201SS | Zinc plated steel |
| 2 | 301SS | 301SS | ||
| 3 | 304SS | 304SS | ||
| 4 | W4 | 201SS | 201SS | 201SS |
| 5 | 301SS | 301SS | 301SS | |
| 6 | 304SS | 304SS | 304SS |

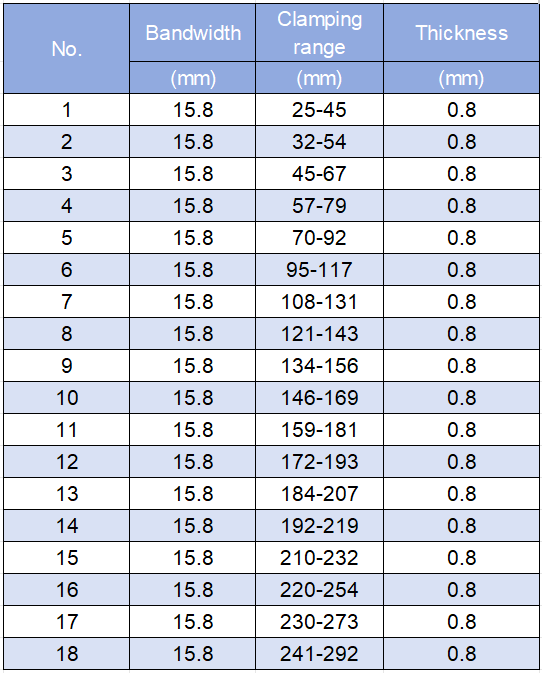

Details:
| No. | Bandwidth | Clamping range | Thickness |
| (mm) | (mm) | (mm) | |
| 1 | 15.8 | 25-45 | 0.8 |
| 2 | 15.8 | 32-54 | 0.8 |
| 3 | 15.8 | 45-67 | 0.8 |
| 4 | 15.8 | 57-79 | 0.8 |
| 5 | 15.8 | 70-92 | 0.8 |
| 6 | 15.8 | 95-117 | 0.8 |
| 7 | 15.8 | 108-131 | 0.8 |
| 8 | 15.8 | 121-143 | 0.8 |
| 9 | 15.8 | 134-156 | 0.8 |
| 10 | 15.8 | 146-169 | 0.8 |
| 11 | 15.8 | 159-181 | 0.8 |
| 12 | 15.8 | 172-193 | 0.8 |
| 13 | 15.8 | 184-207 | 0.8 |
| 14 | 15.8 | 192-219 | 0.8 |
| 15 | 15.8 | 210-232 | 0.8 |
| 16 | 15.8 | 220-254 | 0.8 |
| 17 | 15.8 | 230-273 | 0.8 |
| 18 | 15.8 | 241-292 | 0.8 |
