Product Description

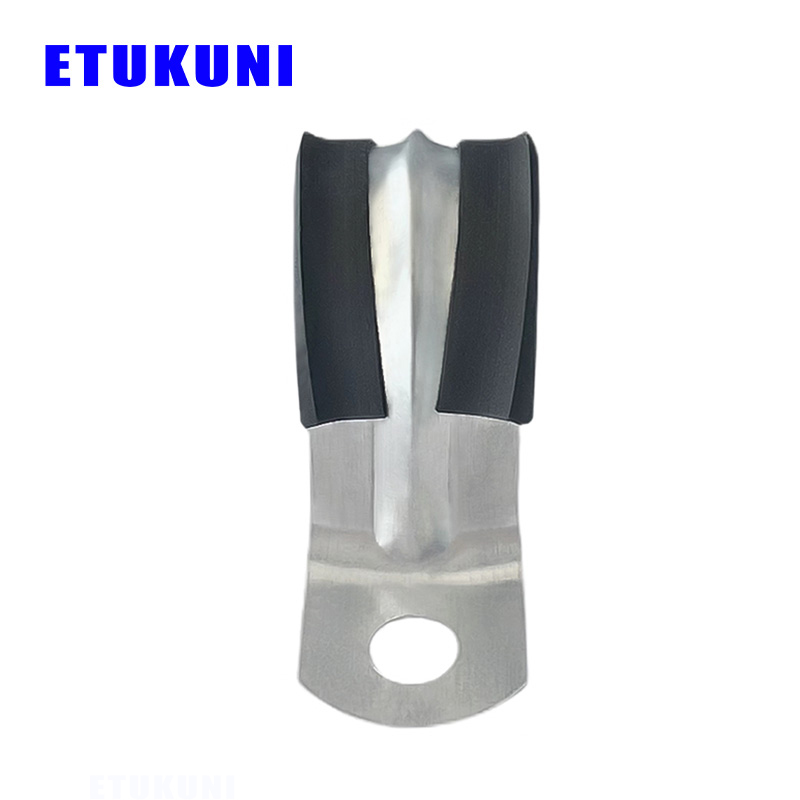

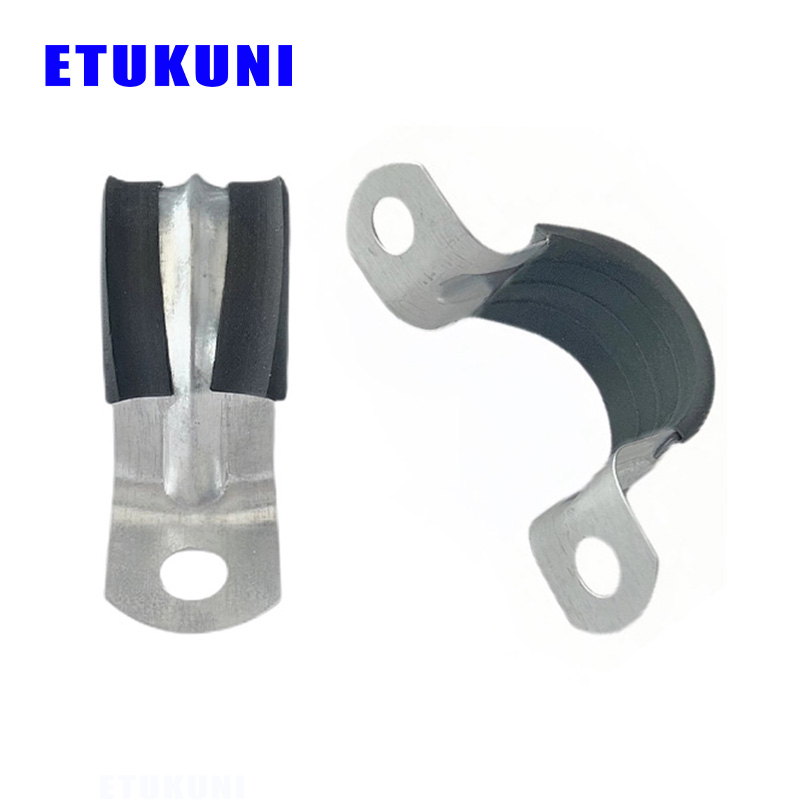

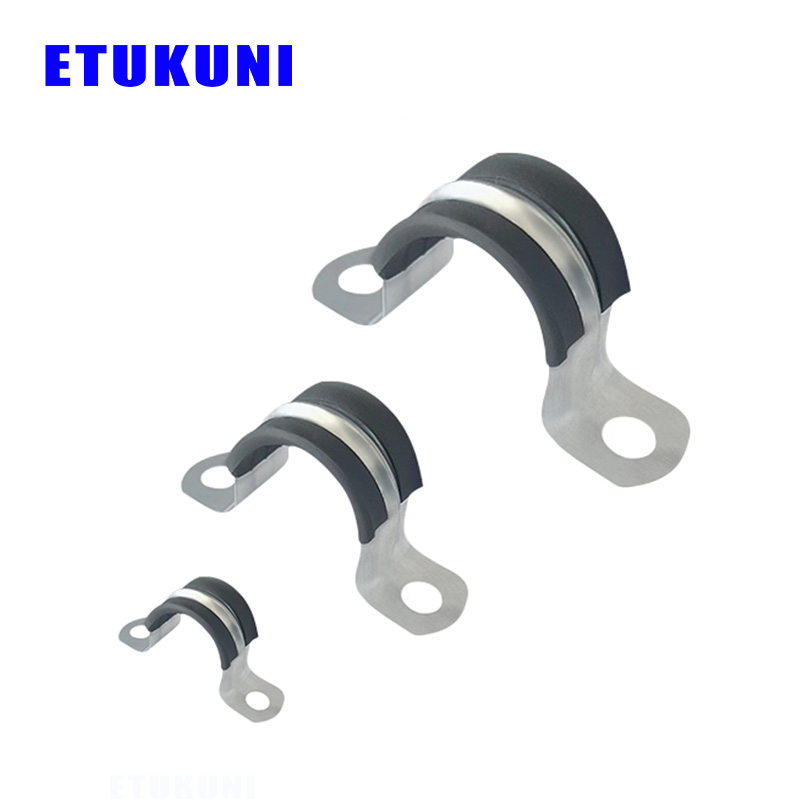

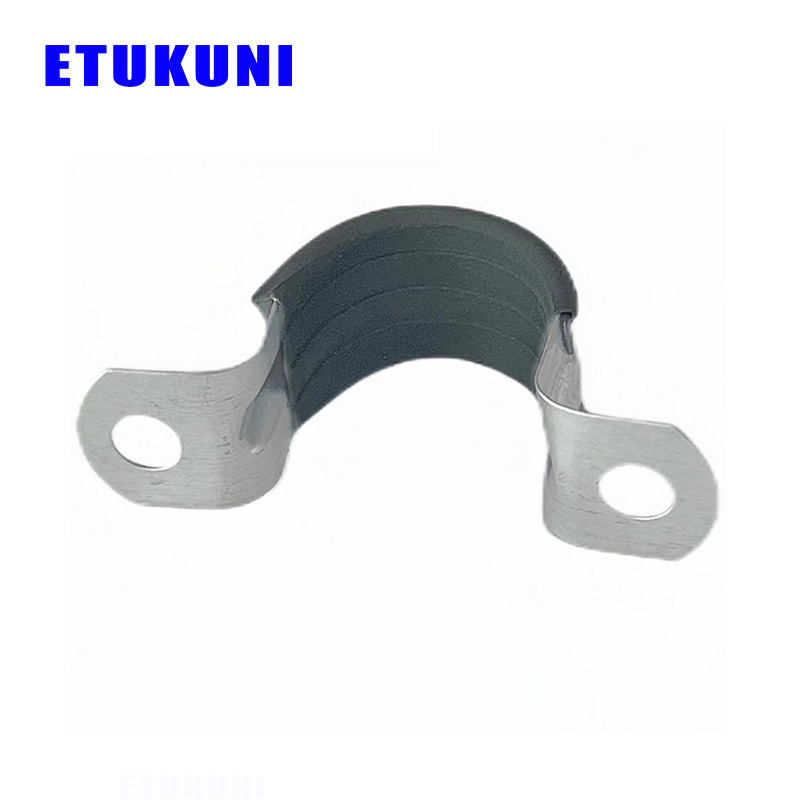

Fixing clamps with rubber :
Unlike standard clamps, saddle pipe clamps merge steel strength with rubber flexibility to outperform in impact resistance and wire protection. While competitors’ products corrode quickly, these clamps retain functionality for years, proving more economical over time.
Material :
| No. | Material | Band | Housing | Screw | Model suffix |
| 1 | W1 | Zinc plated steel | Zinc plated steel | Zinc plated steel | W1 |
| 2 | W4 | 201SS | 201SS | 201SS | W4-1 |
| 3 | 301SS | 301SS | 301SS | W4-2 | |
| 4 | 304SS | 304SS | 304SS | W4-3 |
Product Parameters
| No. | Clampingrange | Bandwidth (mm) |
Bandthickness(mm) | aperture (mm) |
| (mm) | ||||
| 1 | Φ4 | 12 | 0.6 | 5.3 |
| 2 | Φ6 | 12 | 0.6 | 5.3 |
| 3 | Φ8 | 12 | 0.6 | 5.3 |
| 4 | Φ10 | 12 | 0.6 | 5.3 |
| 5 | Φ12 | 12 | 0.6 | 5.3 |
| 6 | Φ14 | 12 | 0.8 | 5.3 |
| 7 | Φ16 | 12 | 0.8 | 5.3 |
| 8 | Φ18 | 12 | 0.8 | 5.3 |
| 9 | Φ20 | 12 | 0.8 | 5.3 |
| 10 | Φ22 | 12 | 0.8 | 5.3 |
| 11 | Φ24 | 12 | 0.8 | 5.3 |
| 12 | Φ26 | 12 | 0.8 | 5.3 |
| 13 | Φ28 | 12 | 0.8 | 5.3 |
| 14 | Φ30 | 12 | 0.8 | 5.3 |
| 15 | Φ32 | 12 | 0.8 | 5.3 |
| 16 | Φ34 | 12 | 0.8 | 5.3 |
| 17 | Φ36 | 12 | 0.8 | 5.3 |
| 18 | Φ38 | 12 | 0.8 | 5.3 |
| 19 | Φ40 | 12 | 0.8 | 5.3 |
| 20 | Φ42 | 12 | 0.8 | 5.3 |
| 21 | Φ44 | 12 | 0.8 | 5.3 |
| 22 | Φ46 | 12 | 0.8 | 5.3 |
| 23 | Φ48 | 12 | 0.8 | 5.3 |
| 24 | Φ50 | 12 | 0.8 | 5.3 |
| 25 | Φ6 | 15 | 0.6 | 6.4 |
| 26 | Φ8 | 15 | 0.6 | 6.4 |
| 27 | Φ10 | 15 | 0.6 | 6.4 |
| 28 | Φ12 | 15 | 0.6 | 6.4 |
| 29 | Φ14 | 15 | 0.6 | 6.4 |
| 30 | Φ16 | 15 | 0.8 | 6.4 |
| 31 | Φ18 | 15 | 0.8 | 6.4 |
| 32 | Φ20 | 15 | 0.8 | 6.4 |
| 33 | Φ22 | 15 | 0.8 | 6.4 |
| 34 | Φ24 | 15 | 0.8 | 6.4 |
| 35 | Φ26 | 15 | 0.8 | 6.4 |
| 36 | Φ28 | 15 | 0.8 | 6.4 |
| 37 | Φ30 | 15 | 0.8 | 6.4 |
| 38 | Φ32 | 15 | 0.8 | 6.4 |
| 39 | Φ34 | 15 | 0.8 | 6.4 |
| 40 | Φ36 | 15 | 0.8 | 6.4 |
| 41 | Φ38 | 15 | 0.8 | 6.4 |
| 42 | Φ40 | 15 | 0.8 | 6.4 |
| 43 | Φ42 | 15 | 0.8 | 6.4 |
| 44 | Φ44 | 15 | 0.8 | 6.4 |
| 45 | Φ46 | 15 | 0.8 | 6.4 |
| 46 | Φ48 | 15 | 0.8 | 6.4 |
| 47 | Φ50 | 15 | 0.8 | 6.4 |
| 48 | Φ14 | 20 | 0.8 | 8.4 |
| 49 | Φ16 | 20 | 0.8 | 8.4 |
| 50 | Φ18 | 20 | 0.8 | 8.4 |
| 51 | Φ20 | 20 | 0.8 | 8.4 |
| 52 | Φ22 | 20 | 0.8 | 8.4 |
| 53 | Φ24 | 20 | 0.8 | 8.4 |
| 54 | Φ26 | 20 | 1.0 | 8.4 |
| 55 | Φ28 | 20 | 1.0 | 8.4 |
| 56 | Φ30 | 20 | 1.0 | 8.4 |
| 57 | Φ32 | 20 | 1.0 | 8.4 |
| 58 | Φ34 | 20 | 1.0 | 8.4 |
| 59 | Φ36 | 20 | 1.0 | 8.4 |
| 60 | Φ38 | 20 | 1.0 | 8.4 |
| 61 | Φ40 | 20 | 1.0 | 8.4 |
| 62 | Φ42 | 20 | 1.0 | 8.4 |
| 63 | Φ44 | 20 | 1.0 | 8.4 |
| 64 | Φ46 | 20 | 1.0 | 8.4 |
| 65 | Φ48 | 20 | 1.0 | 8.4 |
| 66 | Φ50 | 20 | 1.0 | 8.4 |
| 67 | Φ16 | 25 | 1.0 | 10.5 |
| 68 | Φ18 | 25 | 1.0 | 10.5 |
| 69 | Φ20 | 25 | 1.0 | 10.5 |
| 70 | Φ22 | 25 | 1.0 | 10.5 |
| 71 | Φ24 | 25 | 1.0 | 10.5 |
| 72 | Φ26 | 25 | 1.0 | 10.5 |
| 73 | Φ28 | 25 | 1.0 | 10.5 |
| 74 | Φ30 | 25 | 1.0 | 10.5 |
| 75 | Φ32 | 25 | 1.0 | 10.5 |
| 76 | Φ34 | 25 | 1.0 | 10.5 |
| 77 | Φ36 | 25 | 1.0 | 10.5 |
| 78 | Φ38 | 25 | 1.0 | 10.5 |
| 79 | Φ40 | 25 | 1.0 | 10.5 |
| 80 | Φ42 | 25 | 1.0 | 10.5 |
| 81 | Φ44 | 25 | 1.0 | 10.5 |
| 82 | Φ46 | 25 | 1.0 | 10.5 |
| 83 | Φ48 | 25 | 1.0 | 10.5 |
| 84 | Φ50 | 25 | 1.0 | 10.5 |
