Product Description
Upgrade your hose connections with our Thickness Spring Band Hose Clamps, engineered to deliver exceptional durability, corrosion resistance, and effortless installation. These Thickness Spring Band Hose Clamps feature a high-tensile stainless steel or galvanized steel construction with a smooth polished surface, ensuring a firm grip while protecting hoses from abrasion and leaks in automotive, industrial, or marine applications
Why Choose Our Thickness Spring Band Hose Clamps?
✔ Premium Materials: Made from stainless steel or hot-dip galvanized steel, these clamps resist rust and withstand harsh environments, including chemicals, UV exposure, and temperatures up to 300°C
✔ Thick Spring Band Design: The reinforced band thickness provides superior clamping force, preventing hose slippage even under high pressure or vibration, while polished edges eliminate hose damage
✔ Tool-Free Installation: The spring-loaded mechanism allows quick attachment and adjustment—simply slide the clamp over the hose and release for a secure fit without screws or tools
✔ Universal Compatibility: Designed to securely fit a wide range of hose diameters, making these clamps perfect for diverse applications across automotive, marine, and industrial hydraulic systems.

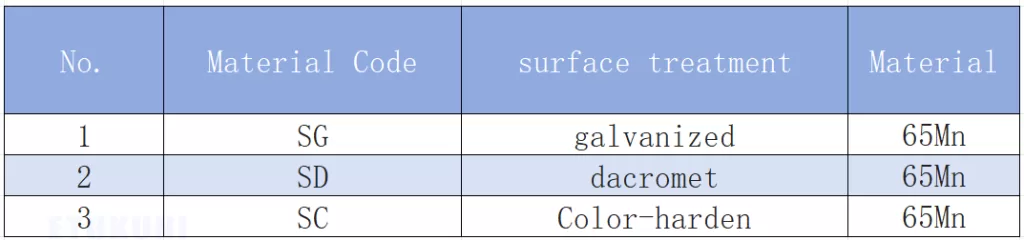

Material：
| No. | Material Code | surface treatment | Material |
| 1 | SG | galvanized | 65Mn steel |
| 2 | SD | dacromet | 65Mn steel |
| 3 | SC | Color-harden | 65Mn steel |

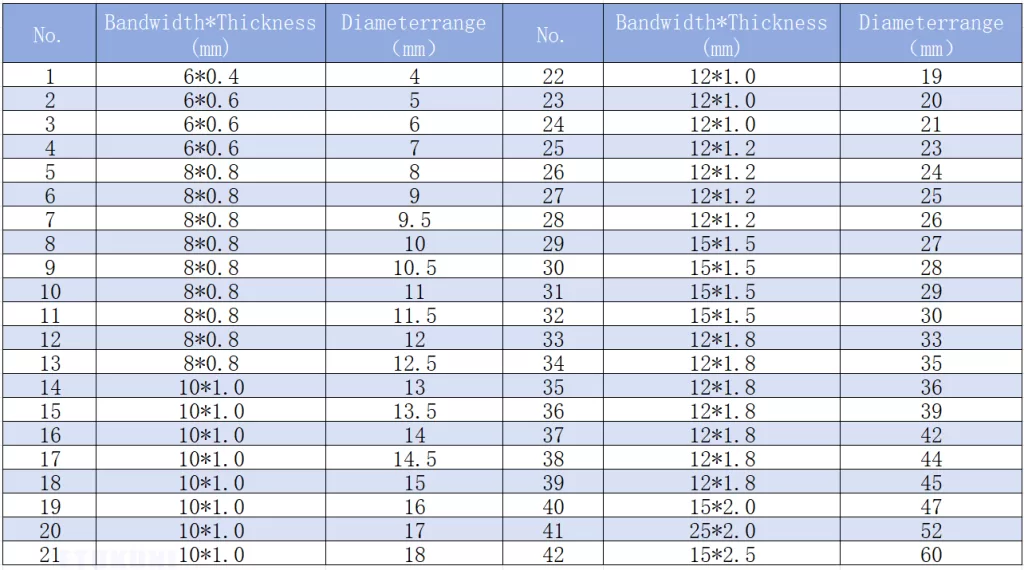

Product Parameters
| No. | Bandwidth*Thickness (mm) |
Diameterrange （mm） |
No. | Bandwidth*Thickness (mm) |
Diameterrange （mm） |
| 1 | 6*0.4 | 4 | 22 | 12*1.0 | 19 |
| 2 | 6*0.6 | 5 | 23 | 12*1.0 | 20 |
| 3 | 6*0.6 | 6 | 24 | 12*1.0 | 21 |
| 4 | 6*0.6 | 7 | 25 | 12*1.2 | 23 |
| 5 | 8*0.8 | 8 | 26 | 12*1.2 | 24 |
| 6 | 8*0.8 | 9 | 27 | 12*1.2 | 25 |
| 7 | 8*0.8 | 9.5 | 28 | 12*1.2 | 26 |
| 8 | 8*0.8 | 10 | 29 | 15*1.5 | 27 |
| 9 | 8*0.8 | 10.5 | 30 | 15*1.5 | 28 |
| 10 | 8*0.8 | 11 | 31 | 15*1.5 | 29 |
| 11 | 8*0.8 | 11.5 | 32 | 15*1.5 | 30 |
| 12 | 8*0.8 | 12 | 33 | 12*1.8 | 33 |
| 13 | 8*0.8 | 12.5 | 34 | 12*1.8 | 35 |
| 14 | 10*1.0 | 13 | 35 | 12*1.8 | 36 |
| 15 | 10*1.0 | 13.5 | 36 | 12*1.8 | 39 |
| 16 | 10*1.0 | 14 | 37 | 12*1.8 | 42 |
| 17 | 10*1.0 | 14.5 | 38 | 12*1.8 | 44 |
| 18 | 10*1.0 | 15 | 39 | 12*1.8 | 45 |
| 19 | 10*1.0 | 16 | 40 | 15*2.0 | 47 |
| 20 | 10*1.0 | 17 | 41 | 25*2.0 | 52 |
| 21 | 10*1.0 | 18 | 42 | 15*2.5 | 60 |
