Product Description
Specialty:
-
- Precision Engineering Enhances Sealing

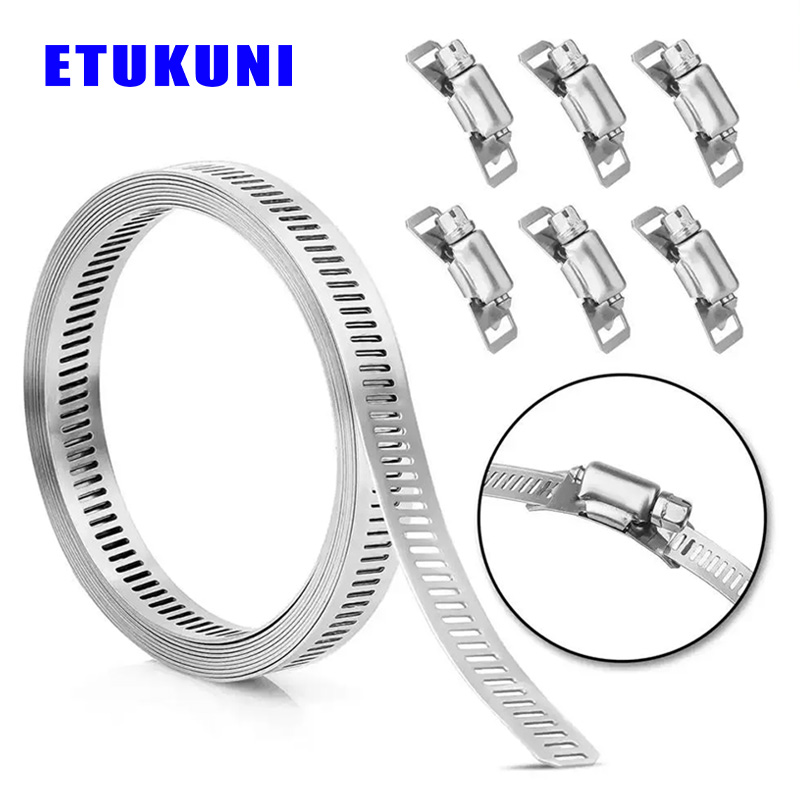

The clamp's uniformly processed band ensures balanced tension distribution, while its precision-machined coupling head achieves a tighter pipe fit. Together, these features significantly improve sealing performance by eliminating gaps and pressure inconsistencies. - Flawless Finishing Protects Hoses
A specialized deburring process removes all surface imperfections, resulting in smoother contact points. This directly reduces hose abrasion during installation and long-term use, extending the hose lifespan. - Tested Superiority in Torque Resistance

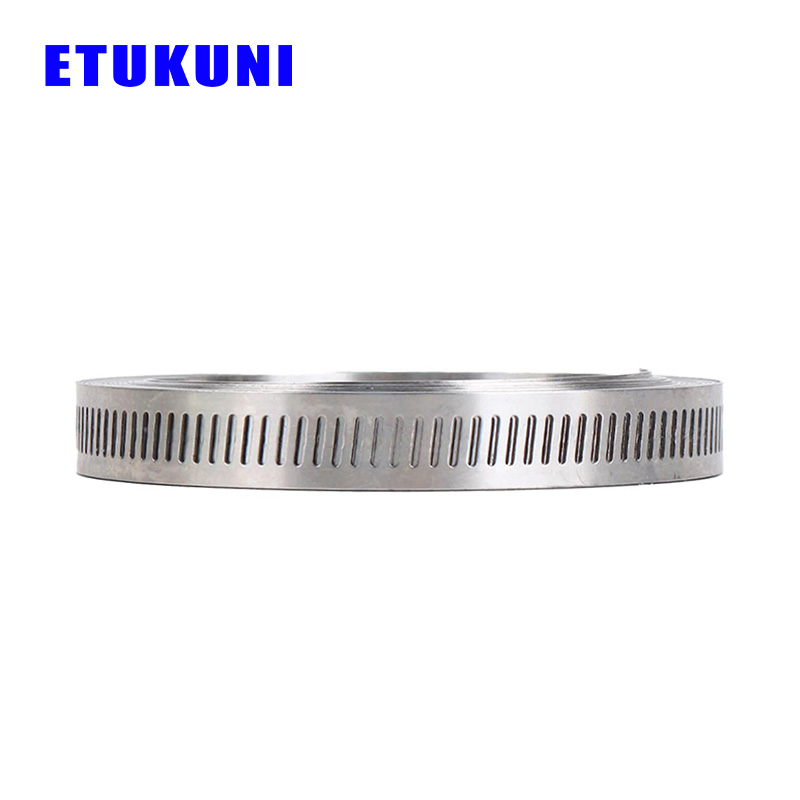

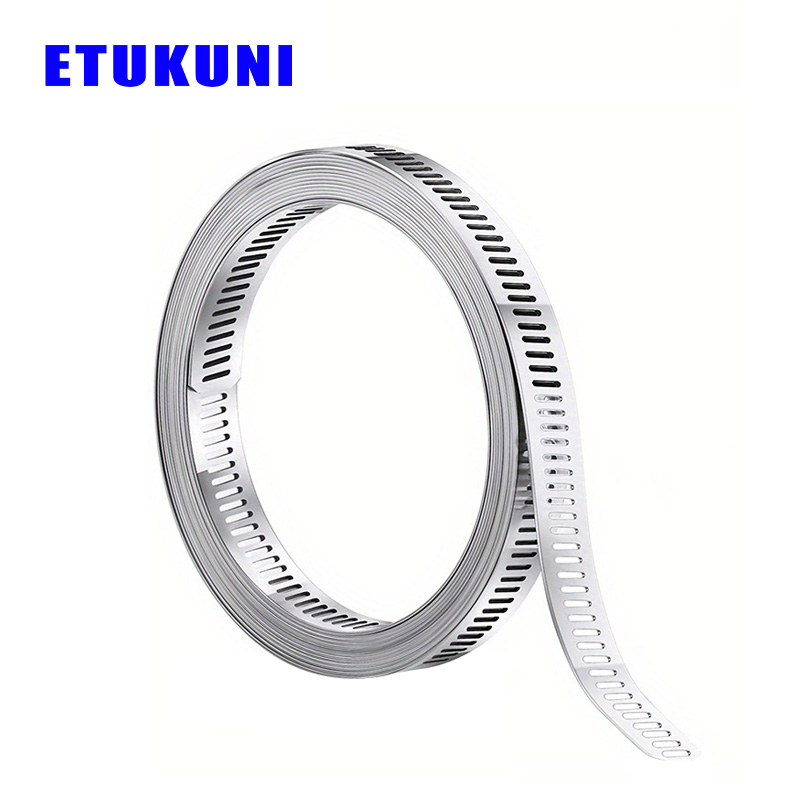

Rigorous laboratory testing confirms that the strap's optimized perforation pattern outperforms standard designs. Specifically, it withstands higher torque loads without deformation, ensuring durability in high-stress applications. - Consistent Quality Through Material Validation
Each component undergoes strict composition analysis and mechanical performance testing. As a result, every clamp delivers stable performance under demanding conditions, meeting industry reliability standards.
- Precision Engineering Enhances Sealing
Material:
No. | Material | Band | Housing | Screw | ![]() |
2 | W2 | 201SS | 201SS | Zinc plated steel | |
3 | 301SS | 301SS | |||
4 | 304SS | 304SS | |||
5 | W4 | 201SS | 201SS | 201SS | |
6 | 301SS | 301SS | 301SS | ||
7 | 304SS | 304SS | 304SS |
Product Description:
No. | Bandwidth (mm) |
Clamping range | Thickness (mm) |
Suggested install torque | pcs/bag | pcs/carton | |
(mm) | inch | ||||||
1 | 12.7 | 11-25 | 1" | 0.64 | 6.0Nm | 50 | 1000 |
2 | 12.7 | 14-27 | 1-1/16" | 0.64 | 6.0Nm | 50 | 1000 |
3 | 12.7 | 14-32 | 1-1/4" | 0.64 | 6.0Nm | 50 | 1000 |
4 | 12.7 | 17-38 | 1-1/2" | 0.64 | 6.0Nm | 20 | 1000 |
5 | 12.7 | 19-44 | 1-3/4" | 0.64 | 6.0Nm | 20 | 1000 |
6 | 12.7 | 27-51 | 2" | 0.64 | 6.0Nm | 20 | 500 |
7 | 12.7 | 33-57 | 2-1/4" | 0.64 | 6.0Nm | 20 | 500 |
8 | 12.7 | 40-63 | 2-1/2" | 0.64 | 6.0Nm | 20 | 500 |
9 | 12.7 | 46-70 | 2-3/4" | 0.64 | 6.0Nm | 20 | 500 |
10 | 12.7 | 52-76 | 3" | 0.64 | 6.0Nm | 20 | 500 |
11 | 12.7 | 59-82 | 3-1/4" | 0.64 | 6.0Nm | 20 | 250 |
12 | 12.7 | 65-89 | 3-1/2" | 0.64 | 6.0Nm | 20 | 250 |
13 | 12.7 | 71-95 | 3-3/4" | 0.64 | 6.0Nm | 20 | 250 |
14 | 12.7 | 78-101 | 4" | 0.64 | 6.0Nm | 20 | 250 |
15 | 12.7 | 64-114 | 4-1/2" | 0.64 | 6.0Nm | 20 | 250 |
16 | 12.7 | 76-127 | 5" | 0.64 | 6.0Nm | 20 | 250 |
17 | 12.7 | 89-139 | 5-1/2" | 0.64 | 6.0Nm | 20 | 250 |
18 | 12.7 | 102-152 | 6" | 0.64 | 6.0Nm | 20 | 250 |
19 | 12.7 | 114-165 | 6-1/2" | 0.64 | 6.0Nm | 10 | 250 |
20 | 12.7 | 127-178 | 7" | 0.64 | 6.0Nm | 10 | 250 |
21 | 12.7 | 130-203 | 6" | 0.64 | 6.0Nm | 10 | 200 |
22 | 12.7 | 235-254 | 6-1/2" | 0.64 | 6.0Nm | 10 | 100 |
23 | 12.7 | 280-305 | 7" | 0.64 | 6.0Nm | 10 | 100 |
