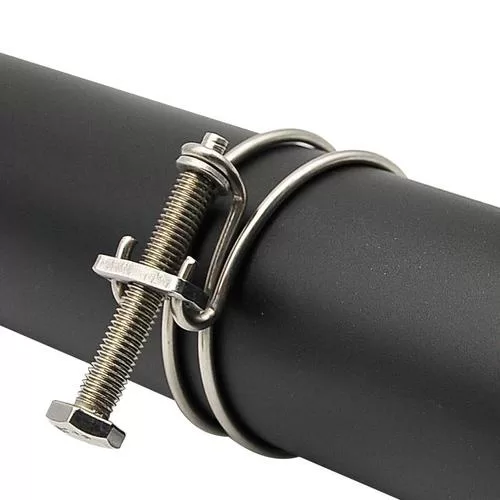

Why choose steel wire hose clamps for securing and sealing hydraulic oil pipes?
First, let’s look at the structure and operating environment of special-shaped hydraulic oil pipes. These pipes are made of PVC with steel wire reinforcement and are used in high-vibration environments, which places high demands on the clamp’s torque.
For instance, American, British, and German-style clamps lack sufficient torque—if their torque fails to meet requirements after installation, they may loosen or cause oil leaks. On the other hand, European-style clamps and tiger clamps are either unavailable in small sizes, too costly, or too bulky to install. After considering all options, steel wire hose clamps stand out as the best fit: they offer strong torque, and their steel wires can effectively secure the flexible part of hydraulic oil pipes, solving these issues.
Thus, steel wire hose clamps are an ideal choice for hydraulic oil pipe installations. Before selecting a steel wire hose clamp, first choose a suitable hydraulic oil pipe.
When inserting the hydraulic oil pipe into the inlet joint of the hydraulic pump, the two should fit tightly with no gaps or excessive looseness. Normally, inserting the pipe into the joint should require some effort; this ensures the steel wire hose clamp can properly seal. To measure the adjusted hose diameter: if, for example, the diameter is 40mm, a steel wire hose clamp sized 37-42mm would be appropriate. This is how to select the right size for steel wire hose clamps.
Once the size is chosen, proceed with installation as follows:
1.After selecting the hose and steel wire hose clamp, apply sealant to the hydraulic pump joint. The sealant is paste-like before use and turns into a gel after application, creating a complete seal. It is highly recommended to use sealant, as this significantly reduces the risk of oil leaks.
2.After applying the sealant, slide the steel wire hose clamp over the pipe and then firmly insert the pipe into the joint. Do not twist the inserted pipe; allow the sealant to gradually set and form a gasket-like layer.
3.Cut the hydraulic hose to the required length.
