Product Description

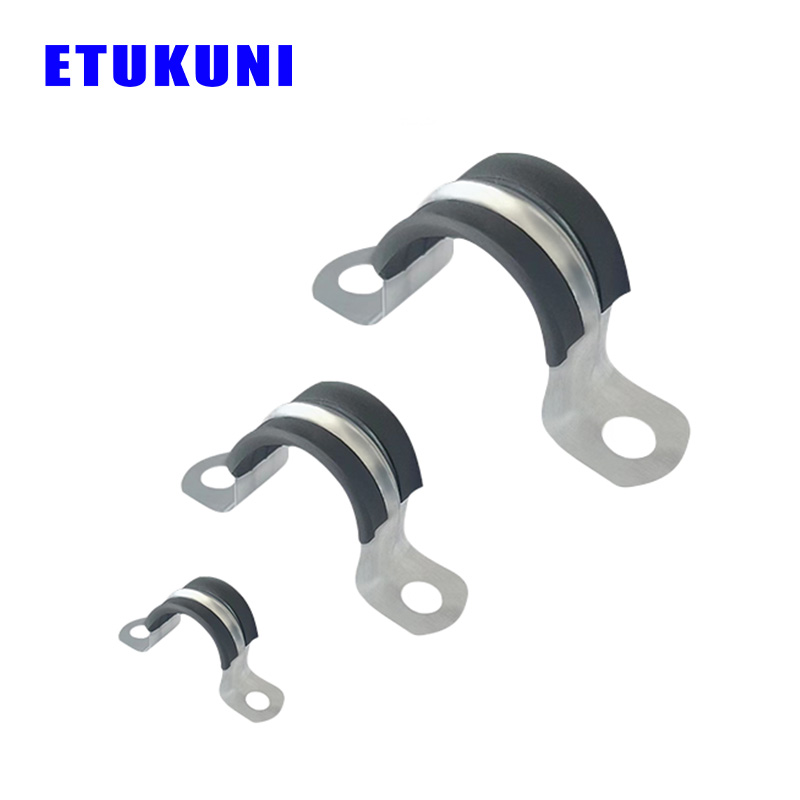

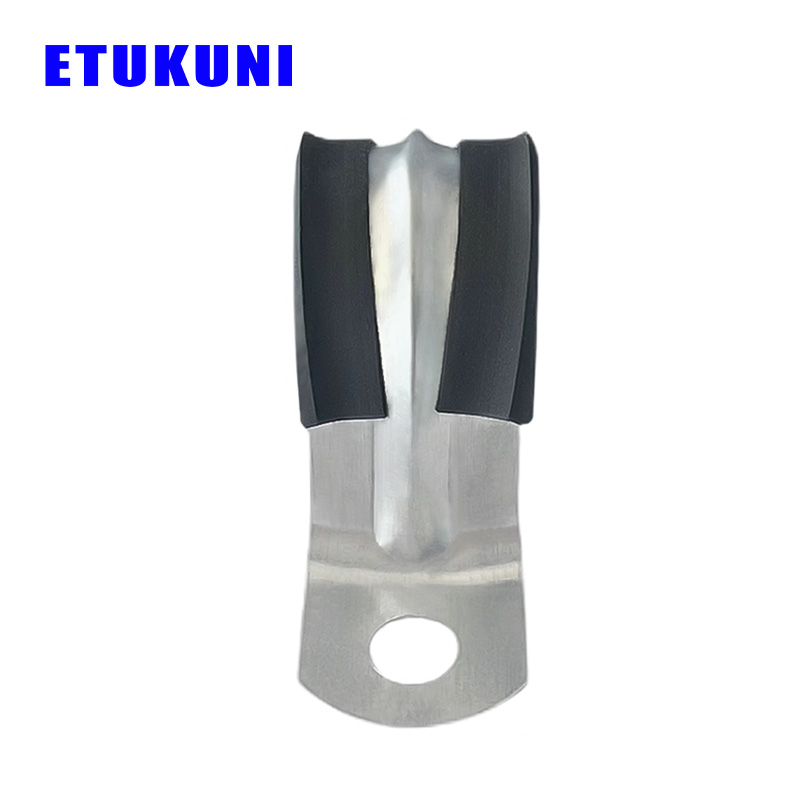

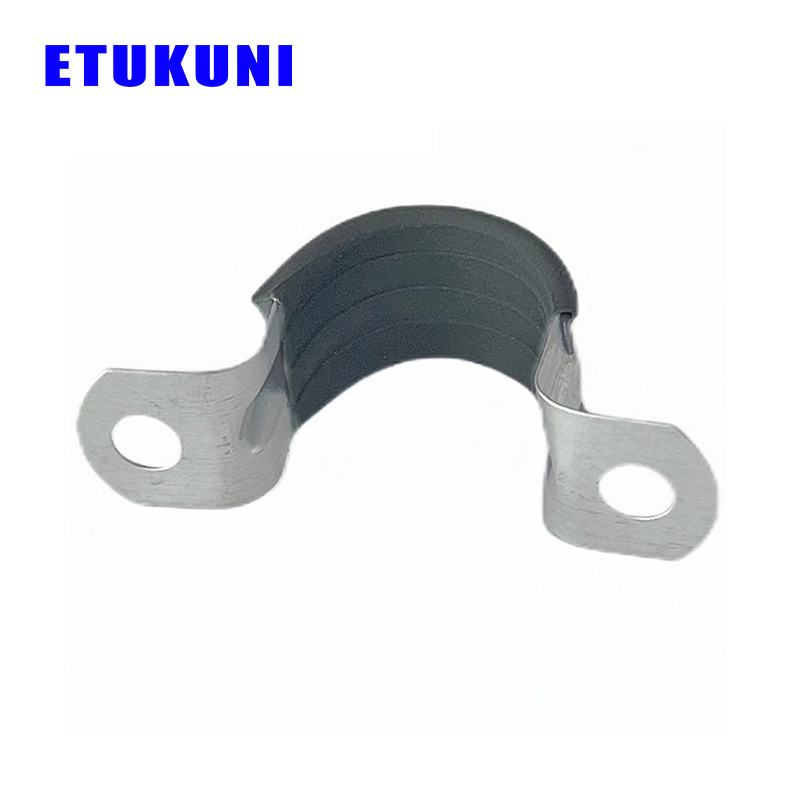

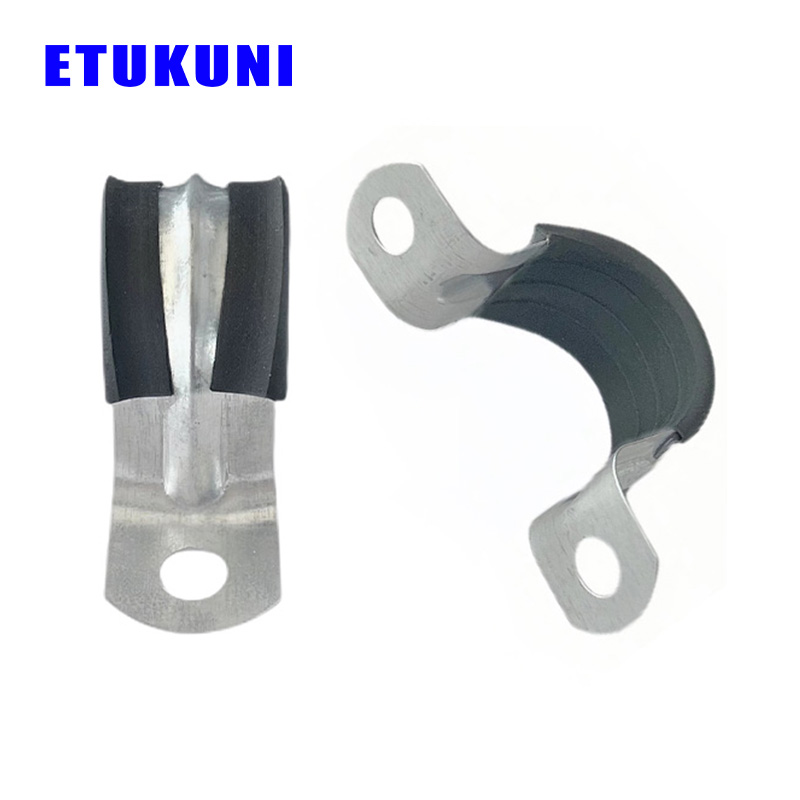

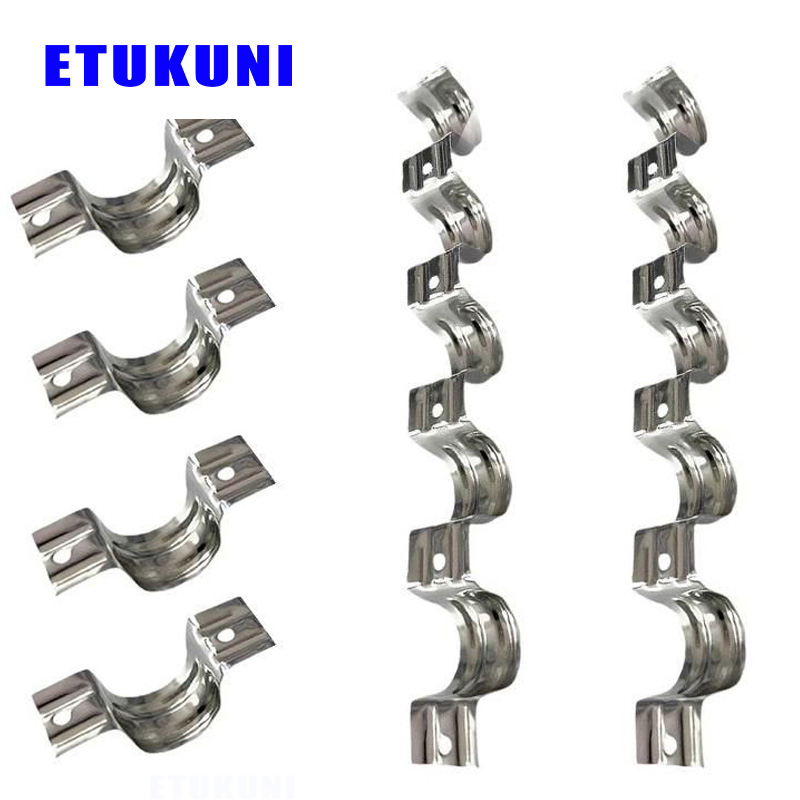

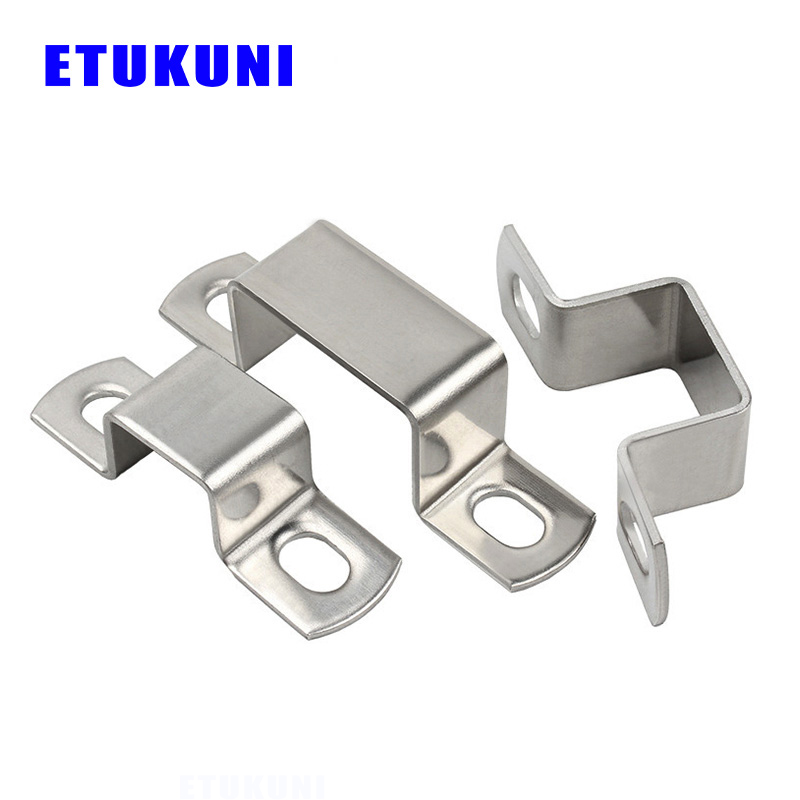

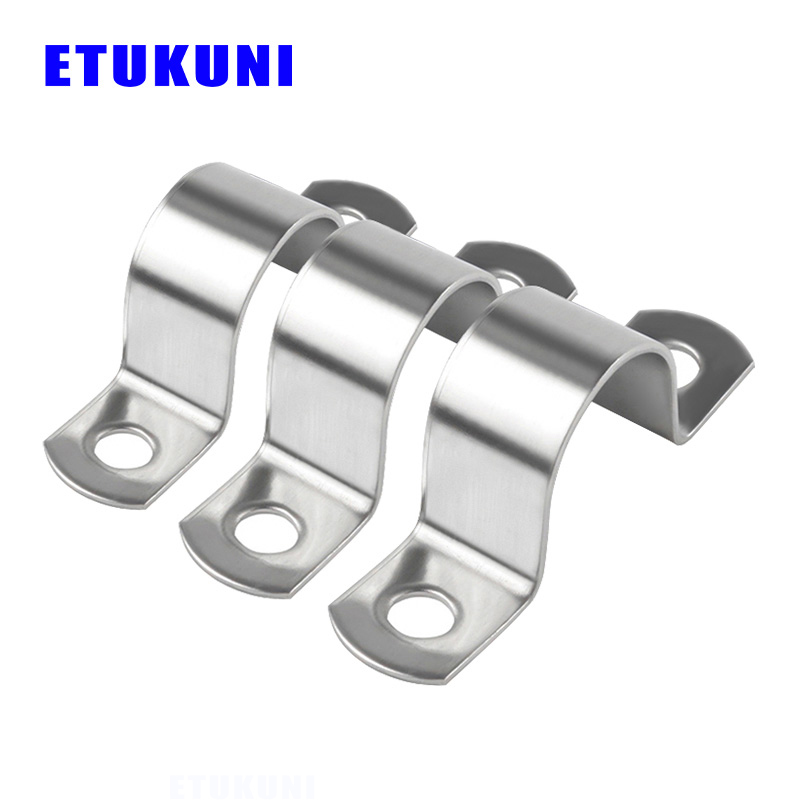

Fixing clamps with rubber :
1. Strong and durable, these clamps effectively protect fixed wires from surface damage, while their rugged construction ensures long-term reliability.
2. Featuring an all-steel and rubber combination, they deliver high strength and outstanding impact resistance—perfect for demanding environments.
3. Thanks to their superior corrosion resistance, they maintain peak performance and provide an extended service life, making them a cost-effective solution.
Material :
| No. | Material | Band | Housing | Screw | Model suffix |
| 1 | W1 | Zinc plated steel | Zinc plated steel | Zinc plated steel | W1 |
| 2 | W4 | 201SS | 201SS | 201SS | W4-1 |
| 3 | 301SS | 301SS | 301SS | W4-2 | |
| 4 | 304SS | 304SS | 304SS | W4-3 |

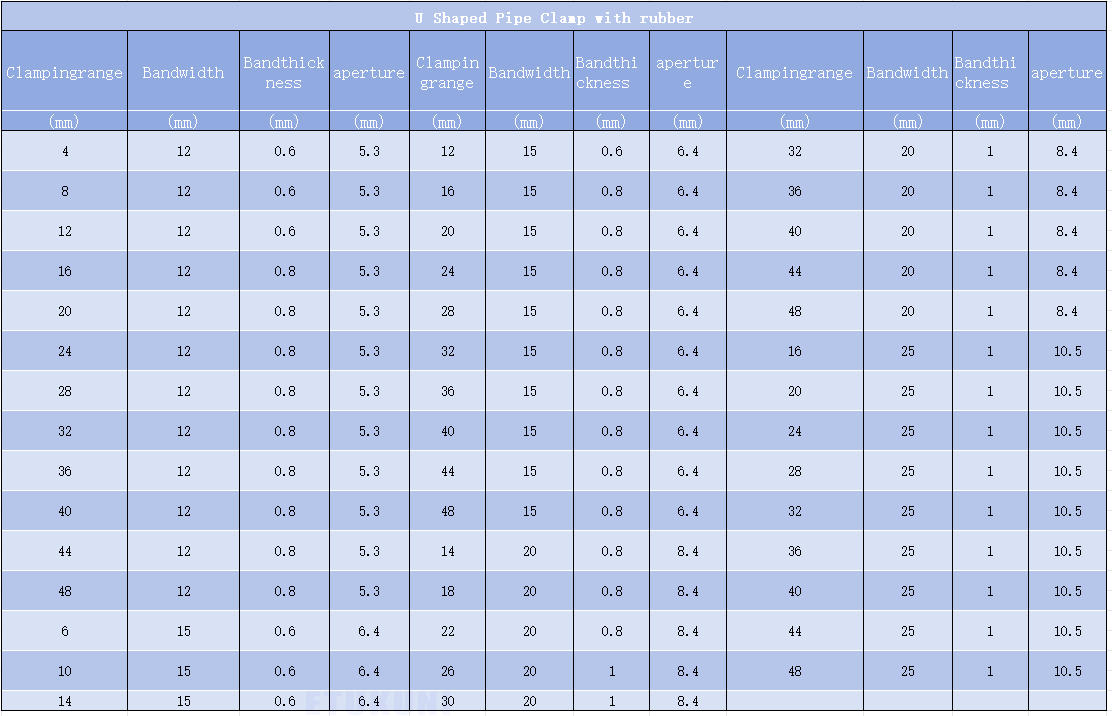

Product Parameters
| No. | Clampingrange | Bandwidth (mm) |
Bandthickness(mm) | aperture (mm) |
| (mm) | ||||
| 1 | Φ4 | 12 | 0.6 | 5.3 |
| 2 | Φ6 | 12 | 0.6 | 5.3 |
| 3 | Φ8 | 12 | 0.6 | 5.3 |
| 4 | Φ10 | 12 | 0.6 | 5.3 |
| 5 | Φ12 | 12 | 0.6 | 5.3 |
| 6 | Φ14 | 12 | 0.8 | 5.3 |
| 7 | Φ16 | 12 | 0.8 | 5.3 |
| 8 | Φ18 | 12 | 0.8 | 5.3 |
| 9 | Φ20 | 12 | 0.8 | 5.3 |
| 10 | Φ22 | 12 | 0.8 | 5.3 |
| 11 | Φ24 | 12 | 0.8 | 5.3 |
| 12 | Φ26 | 12 | 0.8 | 5.3 |
| 13 | Φ28 | 12 | 0.8 | 5.3 |
| 14 | Φ30 | 12 | 0.8 | 5.3 |
| 15 | Φ32 | 12 | 0.8 | 5.3 |
| 16 | Φ34 | 12 | 0.8 | 5.3 |
| 17 | Φ36 | 12 | 0.8 | 5.3 |
| 18 | Φ38 | 12 | 0.8 | 5.3 |
| 19 | Φ40 | 12 | 0.8 | 5.3 |
| 20 | Φ42 | 12 | 0.8 | 5.3 |
| 21 | Φ44 | 12 | 0.8 | 5.3 |
| 22 | Φ46 | 12 | 0.8 | 5.3 |
| 23 | Φ48 | 12 | 0.8 | 5.3 |
| 24 | Φ50 | 12 | 0.8 | 5.3 |
| 25 | Φ6 | 15 | 0.6 | 6.4 |
| 26 | Φ8 | 15 | 0.6 | 6.4 |
| 27 | Φ10 | 15 | 0.6 | 6.4 |
| 28 | Φ12 | 15 | 0.6 | 6.4 |
| 29 | Φ14 | 15 | 0.6 | 6.4 |
| 30 | Φ16 | 15 | 0.8 | 6.4 |
| 31 | Φ18 | 15 | 0.8 | 6.4 |
| 32 | Φ20 | 15 | 0.8 | 6.4 |
| 33 | Φ22 | 15 | 0.8 | 6.4 |
| 34 | Φ24 | 15 | 0.8 | 6.4 |
| 35 | Φ26 | 15 | 0.8 | 6.4 |
| 36 | Φ28 | 15 | 0.8 | 6.4 |
| 37 | Φ30 | 15 | 0.8 | 6.4 |
| 38 | Φ32 | 15 | 0.8 | 6.4 |
| 39 | Φ34 | 15 | 0.8 | 6.4 |
| 40 | Φ36 | 15 | 0.8 | 6.4 |
| 41 | Φ38 | 15 | 0.8 | 6.4 |
| 42 | Φ40 | 15 | 0.8 | 6.4 |
| 43 | Φ42 | 15 | 0.8 | 6.4 |
| 44 | Φ44 | 15 | 0.8 | 6.4 |
| 45 | Φ46 | 15 | 0.8 | 6.4 |
| 46 | Φ48 | 15 | 0.8 | 6.4 |
| 47 | Φ50 | 15 | 0.8 | 6.4 |
| 48 | Φ14 | 20 | 0.8 | 8.4 |
| 49 | Φ16 | 20 | 0.8 | 8.4 |
| 50 | Φ18 | 20 | 0.8 | 8.4 |
| 51 | Φ20 | 20 | 0.8 | 8.4 |
| 52 | Φ22 | 20 | 0.8 | 8.4 |
| 53 | Φ24 | 20 | 0.8 | 8.4 |
| 54 | Φ26 | 20 | 1.0 | 8.4 |
| 55 | Φ28 | 20 | 1.0 | 8.4 |
| 56 | Φ30 | 20 | 1.0 | 8.4 |
| 57 | Φ32 | 20 | 1.0 | 8.4 |
| 58 | Φ34 | 20 | 1.0 | 8.4 |
| 59 | Φ36 | 20 | 1.0 | 8.4 |
| 60 | Φ38 | 20 | 1.0 | 8.4 |
| 61 | Φ40 | 20 | 1.0 | 8.4 |
| 62 | Φ42 | 20 | 1.0 | 8.4 |
| 63 | Φ44 | 20 | 1.0 | 8.4 |
| 64 | Φ46 | 20 | 1.0 | 8.4 |
| 65 | Φ48 | 20 | 1.0 | 8.4 |
| 66 | Φ50 | 20 | 1.0 | 8.4 |
| 67 | Φ16 | 25 | 1.0 | 10.5 |
| 68 | Φ18 | 25 | 1.0 | 10.5 |
| 69 | Φ20 | 25 | 1.0 | 10.5 |
| 70 | Φ22 | 25 | 1.0 | 10.5 |
| 71 | Φ24 | 25 | 1.0 | 10.5 |
| 72 | Φ26 | 25 | 1.0 | 10.5 |
| 73 | Φ28 | 25 | 1.0 | 10.5 |
| 74 | Φ30 | 25 | 1.0 | 10.5 |
| 75 | Φ32 | 25 | 1.0 | 10.5 |
| 76 | Φ34 | 25 | 1.0 | 10.5 |
| 77 | Φ36 | 25 | 1.0 | 10.5 |
| 78 | Φ38 | 25 | 1.0 | 10.5 |
| 79 | Φ40 | 25 | 1.0 | 10.5 |
| 80 | Φ42 | 25 | 1.0 | 10.5 |
| 81 | Φ44 | 25 | 1.0 | 10.5 |
| 82 | Φ46 | 25 | 1.0 | 10.5 |
| 83 | Φ48 | 25 | 1.0 | 10.5 |
| 84 | Φ50 | 25 | 1.0 | 10.5 |
